PMX45 Plasma Cutting Torch
PM45 Plasma Cutting Torch
PM45 Plasma Cutting Torch
PM45 Plasma Cutting Torch
PM45 Plasma Cutting Torch
PM45 Plasma Cutting Torch
PM45 Plasma Cutting Torch
PM45 Plasma Cutting Torch

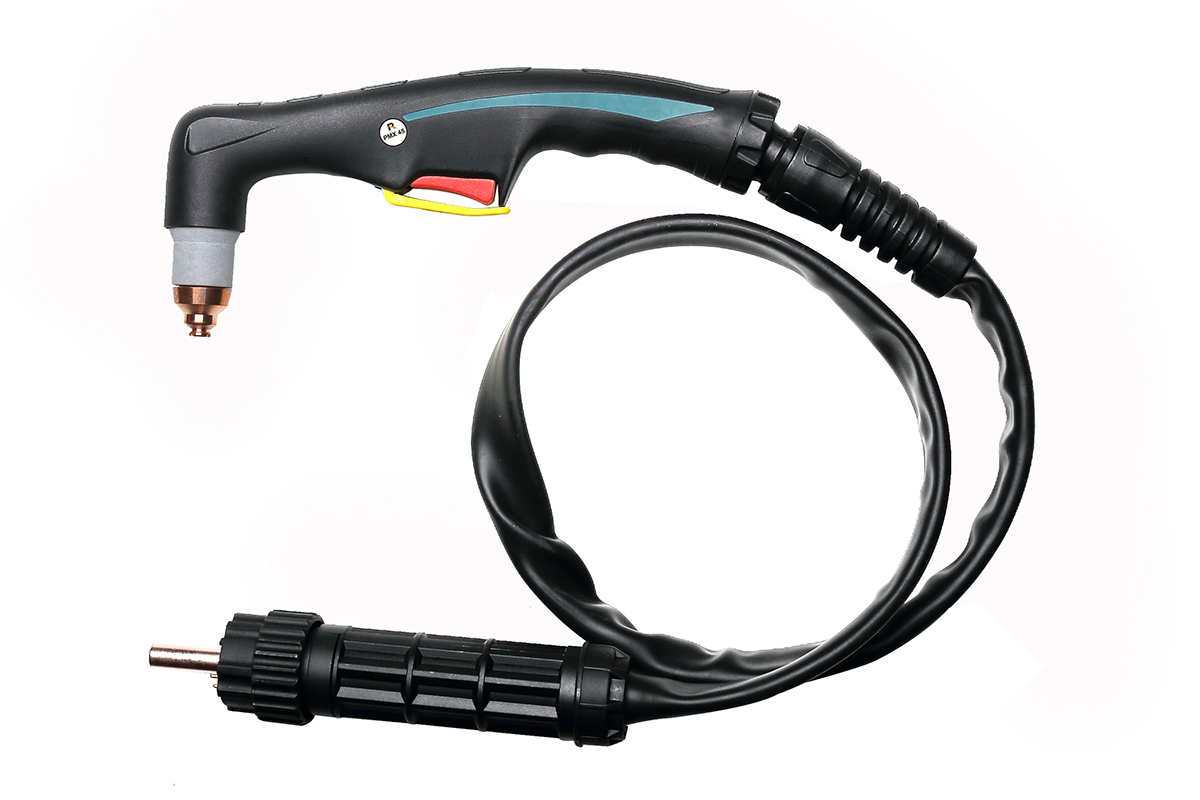

PMX45 Plasma Cutting Torch

1. Easy installation and removal of electrodes and nozzles without any spiral design. No additional tool required.
2. A cooling system at the rear speeds up cooling airflow and prolongs the user period of the cutting gun.
3. 20% -30% Faster in cutting speeds for irons of the same thickness compared to other cutting guns.
4. The cutting gun is capable of cutting low-carbon steel up to 25mm thick. Allows you to handle thicker workpieces.
5. The copper-wrapped gun heads allow for better ignition and prevent any short circuits.
6. It can be directly matched with Hypertherm welding machine t...
Product Detail

plasma banner.jpgPMX45-详1.jpgPMX45-详2.jpg





Technical

Data

Duty Cycle

60%

Current

45Amp / 65Amp

Gas

Air/N2

Gas Pressure

5.0 Bar

Gas Flow

160 LPM

lgnition

Without HF

Post Flow

60 sec.recommended

Standard Length

6M


Complete Torch

Code

Ref

Description

JWU03112


Plasma Cutting Torch/ PMX45/ 6m/ 1/4 G/ integrated / 2 wires

JWU03113

Plasma Cutting Torch/ PMX45/ 6m/ 1/4 G/ separate / 2 wires

JWU03114

Plasma cutting torch/ PMX45/ 6m/ central adaptor/ 2 wires

JWU031041

Plasma cutting torch/ PMX45/ 6m/ central adaptor/ 4 wires

JWU03112-01


Plasma cutting torch/ PMX45P/ 6m/ 1/4 G/ integrated / 2 wires

JWU03113-01
Plasma cutting torch/ PMX45P/ 6m/ 1/4 G/ separate / 2 wires
JWU03114-01
Plasma cutting torch/ PMX45P/ 6m/ central adaptor/ 2 wires
JWU031041-01
Plasma cutting torch/ PMX45P/ 6m/ central adaptor/ 4 wires
JWU03115
Plasma cutting torch/ PMX45/45P/ 6m/ central adaptor/ coaxial cable


Position

Code

Ref.

Description

1

JTN0685


Shield cap PMX45/hand/45A; 保护帽PMX45/手动枪/45A

2

JTN0630


Shield cap /Hand/PMX45/Pro; 保护帽/手动枪/PMX45/Pro

3


220674

Shield cap; 保护帽

4


220675

Shield cap/Gouging; 保护帽/气刨

5

JWT0603


Outside nozzle PMX45; 外喷嘴/PMX45/带短路环

6



Tip; 喷嘴

6.1

JWV0668-09

Tip Φ0.9mm/PMX45/45A; 喷嘴 Φ0.9mm/PMX45/45A

6.2

JWV0668-11


Tip Φ1.1mm/PMX45P/65A/Pro; 喷嘴 Φ1.1mm/PMX45P/65A/Pro

7



Tip; 喷嘴

7.1

JWV0660-09

Tip Φ0.9mm/PMX45/45A/PRO; 喷嘴 Φ0.9mm/PMX45/45A/PRO

7.2

JWV0660-11


Tip Φ1.1mm/PMX45P/65A/PRO; 喷嘴 Φ1.1mm/PMX45P/65A/PRO

8


220671

Tip; 喷嘴

9


220672

TIP/Gouging; 喷嘴/气刨

10

JWG3011

Swirl ring PMX45/45A; 涡流环 PMX45/45A

11

JWC3056


Electrode PMX45/45A; 电极/铜件PMX45/45A

12

JWA0604-01


Plasma torch head/PMX45/hexagonCH20*5; 等离子枪头/PMX45/六角CH20*5

12a

JGU8519

O RING Φ16*1.8 /NBR/Black; O型圈Φ16*1.8/丁腈橡胶/黑色

13

JHW0049-01


Plasma handle manual/PT20-60/PX Torch Head;等离子手工手柄/PT20-60/适用于PX枪头

14

JIK0733


Protection part/plasma/yellow; 开关保护档片/等离子用/黄色

15

JIR0081

Trigger red; 焊枪用开关 21.8MM 红色

16

JIK0809

Plasma joint/PT20-60; 等离子用球节套件/PT20-60

17


Cable assembely; 电缆组

17.1

JWO01804072-22

Cable assembely/PMX45/6M/2 wires/integrated; 电缆组/PMX45/6M/4平方/2芯/气电一体

17.2

JWO01804074-22


Cable assembely/PMX45/6M/2 wires/separated; 电缆组/PMX45/6M/4平方/2芯/气电分体

17.3

JWO01804071-22

Cable assembely/PMX45/6M/2 wires/centre adapter; 电缆组/PMX45/6M/4平方/2芯/中央插头

17.4

JWO01804077-22

Cable assembely/PMX45/6M/4 wires/centre adapter; 电缆组/PMX45/6M/4平方/4芯/中央插头

17.5

JWO01806072-22

Cable assembely/PMX45/6M/2 wires/integrated; 电缆组/PMX45/6M/6平方/2芯/气电一体

17.6JWO01806074-22
Cable assembely/PMX45/6M/2 wires/separated; 电缆组/PMX45/6M/6平方/2芯/气电分体
17.7JWO01806071-22
Cable assembely/PMX45/6M/2 wires/centre adapter; 电缆组/PMX45/6M/6平方/2芯/中央插头
17.8JWO01806077-22
Cable assembely/PMX45/6M/4 wires/centre adapter; 电缆组/PMX45/6M/6平方/4芯/中央插头
17.9JWO0180617C-300
Cable assembely/PMX45/6M/coaxial cable/centre adapter; 电缆组/PMX45/6M/6平方/同轴电缆/中央插头

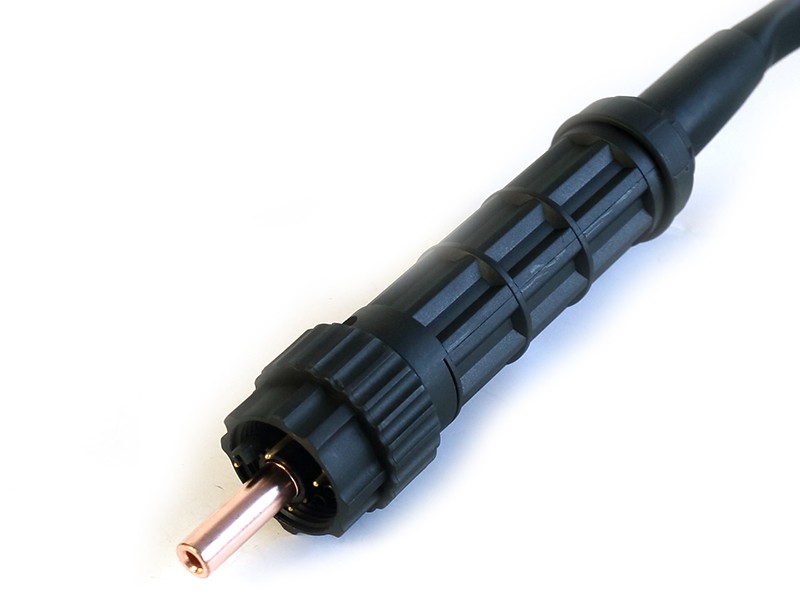

18
JAY0089

Centre adaptor torchside PLASMA 5 PINS; 等离子中央插头/5针
