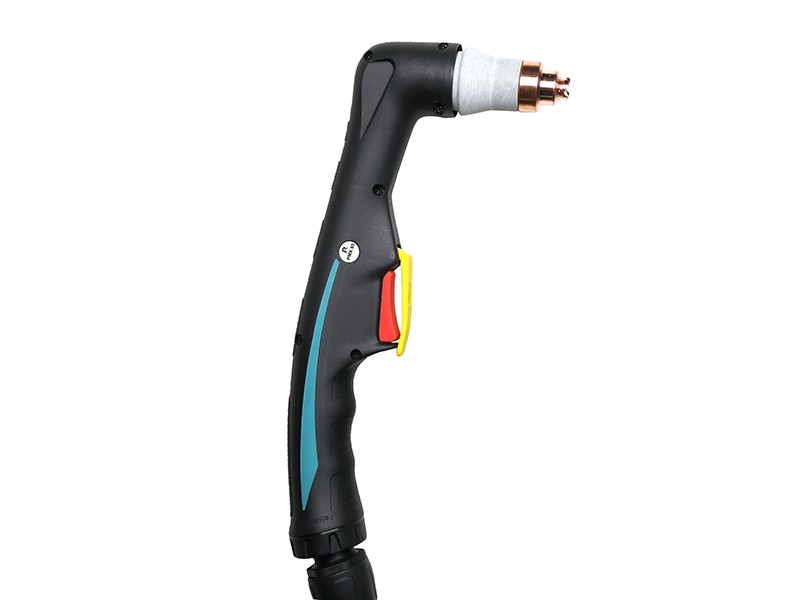

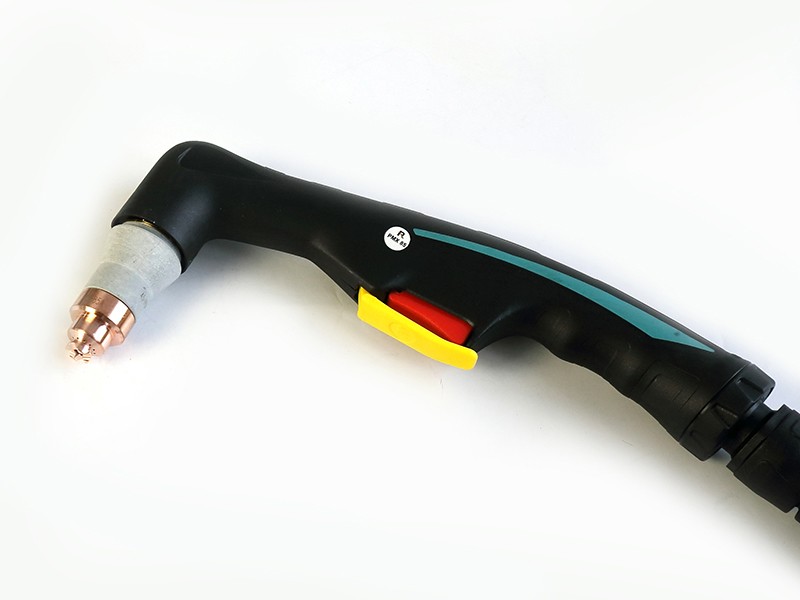

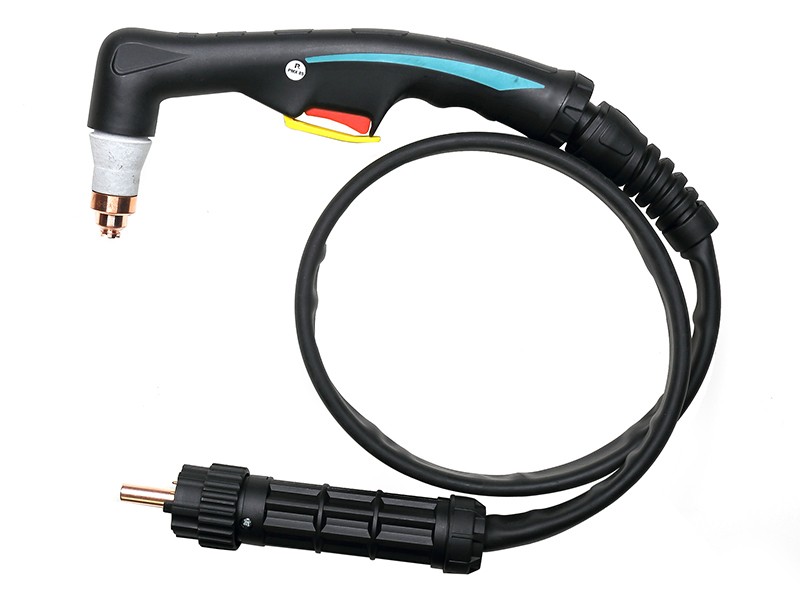

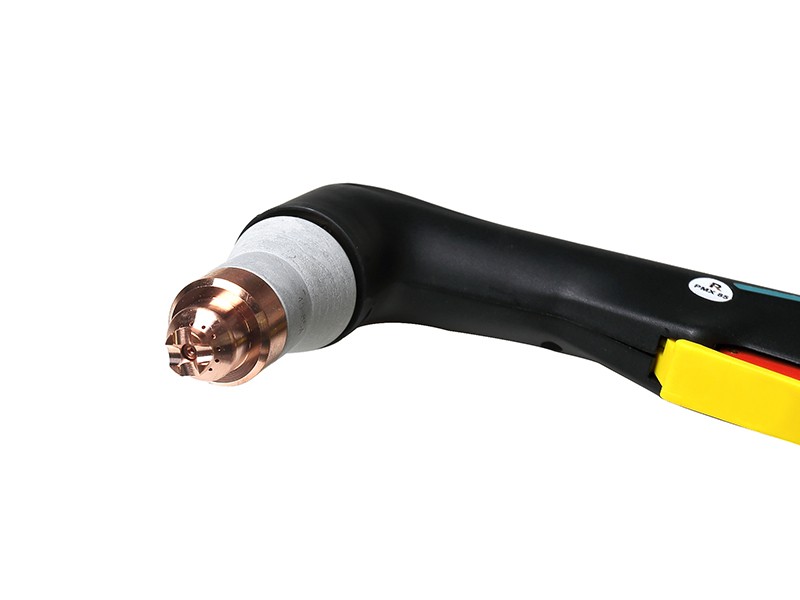

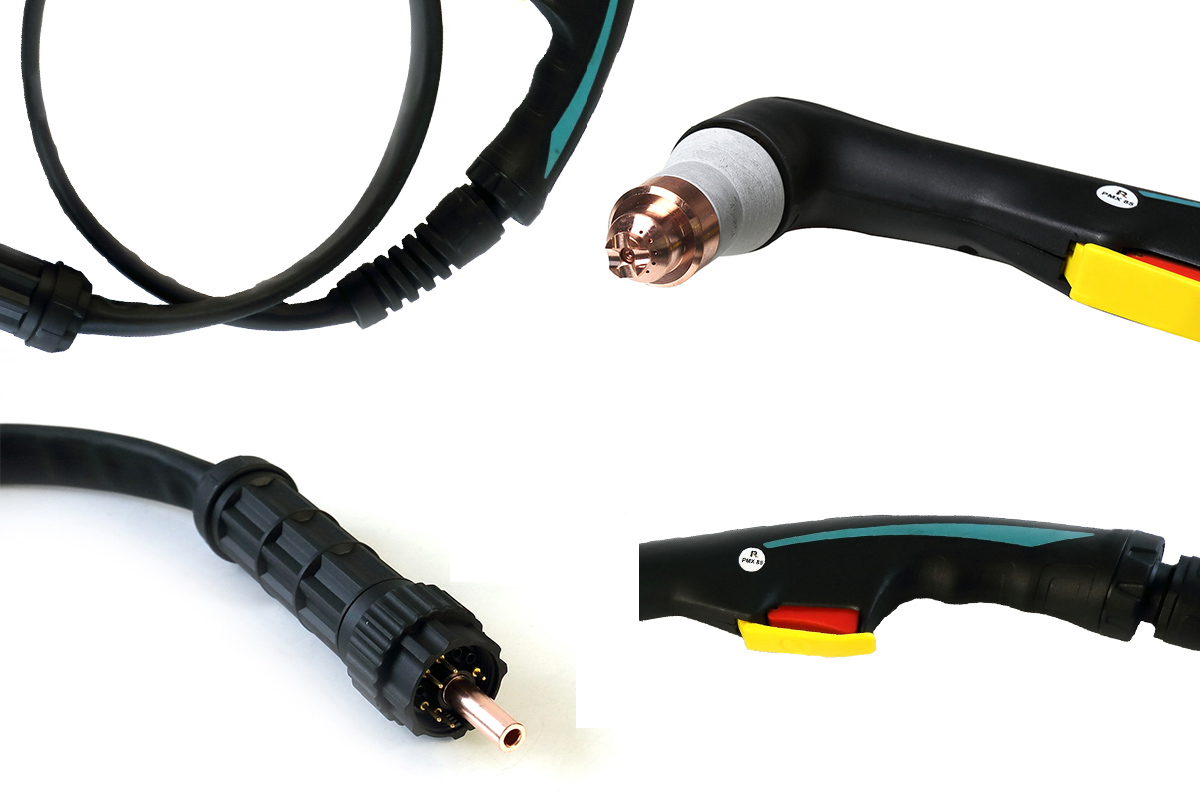

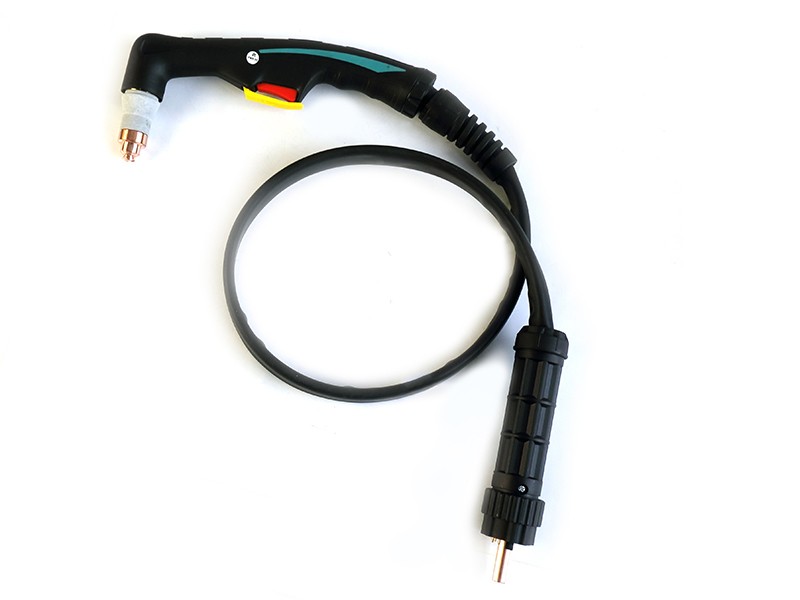

PMX85 Plasma Cutting Torch
PMX85 Plasma Cutting Torch
PMX85 Plasma Cutting Torch
PMX85 Plasma Cutting Torch
PMX85 Plasma Cutting Torch
PMX85 Plasma Cutting Torch
PMX85 Plasma Cutting Torch
Language
- FAQ
- Solutions
- Media Center
- Customers
Technical | Data |
Duty Cycle | 60% |
Current | 85Amp |
Gas | Air/N2 |
Gas Pressure | 5.0 Bar |
Gas Flow | 230 LPM |
lgnition | Without HF |
Post Flow | 80 sec.recommended |
Standard Length | 6M |
Complete Torch
Code | Ref | Description |
JWU03242 | Plasma Cutting Torch/ PMX85/ 6m/ 1/4 G/ integrated / 2 wires | |
JWU03243 | Plasma Cutting Torch/ PMX85/ 6m/ 1/4 G/ separate / 2 wires | |
JWU03244 | Plasma cutting torch/ PMX85/ 6m/ central adaptor/ 2 wires | |
JWU032341 | Plasma cutting torch/ PMX85/ 6m/ central adaptor/ 4 wires | |
| JWU03245 | Plasma cutting torch/ PMX85/ 6m/ central adaptor/ coaxial cable |
Position | Code | Ref. | Description |
1 | 220818 | Shield cap; 保护帽 | |
2 | 220798 | Shield cap/Gouging; 保护帽/气刨 | |
3 | JTN0634 | Shield cap PMX65/85/hand/45A-85A/PRO; 保护帽 PMX65/85/手动枪/45A-85A/PRO | |
4 | JWT0604 | Outside nozzle PMX65/85/105/6 holes; 外喷嘴/PMX65/85/105/带短路环/6孔 | |
5 | Tip; 喷嘴 | ||
5.1 | 220941 | Tip/45A; 喷嘴45A | |
5.2 | 220819 | Tip/65A; 喷嘴65A | |
5.3 | 220816 | Tip/85A; 喷嘴85A | |
6 | 220797 | Tip/Gouging; 喷嘴/气刨 | |
7 | Tip; 喷嘴 | ||
7.1 | JWV0664-09 | Tip Φ0.9mm/PMX65/45A/PRO; 喷嘴 Φ0.9mm/PMX65/45A/PRO | |
7.2 | JWV0664-11 | Tip Φ1.1mm/PMX65/65A/PRO; 喷嘴 Φ1.1mm/PMX65/65A/PRO | |
7.3 | JWV0664-13 | Tip Φ1.3mm/PMX65/65A/PRO; 喷嘴 Φ1.3mm/PMX65/65A/PRO | |
8 | JWG3012 | Swirl ring PMX65/85 45-85A; 涡流环 PMX65/85 /45-85A | |
9 | 220842 | Electrode; 电极 | |
10 | JWC0043 | Electrode PMX65/85/105/43.4; 电极/PMX65/85/105/43.4 | |
11 | JWA0662 | Plasma cutting torch head/PMX65/85/105; 等离子枪头/PMX65/85/105 | |
11a | JGU0686 | O RING Φ17*20.6*1.8 /RED SILICONE; 'O'型圈 17* 20.6*1.8/红色硅胶 | |
12 | JHW0046-01 | Plasma handle manual/A seires/red;等离子手工手柄/A系列/红色/高频低频共用 | |
13 | JIK0733 | Protection part/plasma/yellow; 开关保护档片/等离子用/黄色 | |
14 | JIR0081 | Trigger red; 焊枪用开关 21.8MM 红色 | |
15 | JIK0804 | Tig joint/small/new type; TIG用球节套件/小/新式 | |
16 | Cable assembly; 电缆组 | ||
16.1 | JWO02010072-300 | Cable assembely/PMX85/105/6M/2 wires/separated; 电缆组/PMX85/105/6M/两芯控制线/气电分体 | |
16.2 | JWO02010074-300 | Cable assembely/PMX85/105/6M/2 wires/integrated; 电缆组/PMX85/105/6M/两芯控制线/气电一体 | |
16.3 | JWO02010071-300 | Cable assembely/PMX85/105/6M/2 wires/centre adapter; 电缆组/PMX85/105/6M/两芯控制线/中央插头 | |
16.4 | JWO02010077-300 | Cable assembely/PMX85/105/6M/4 wires/centre adapter; 电缆组/PMX85/105/6M/四芯控制线/中央插头 | |
16.5 | JWO0201017C-300 | Cable assembely/PMX85/105/6M/coaxial cable/centre adapter; 电缆组/PMX85/105/6M/同轴电缆/中央插头 | |

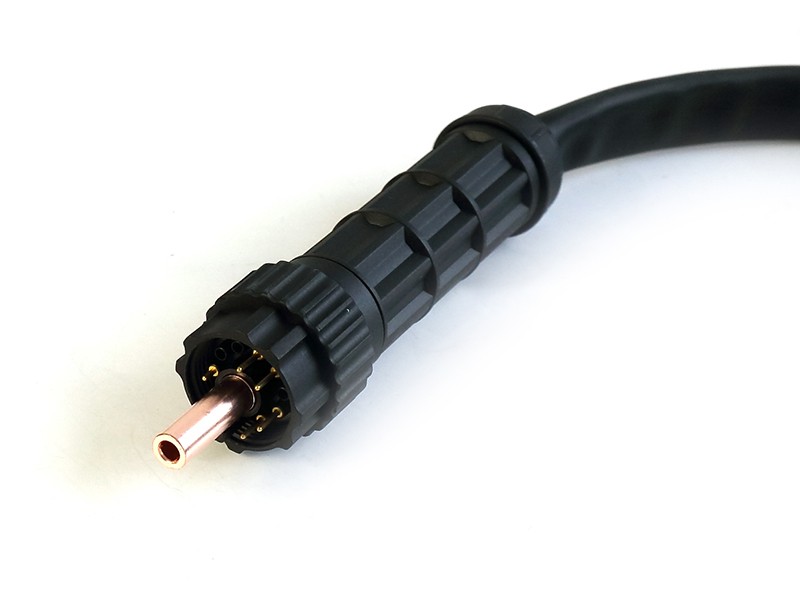

17 | JAY0089 | Centre adaptor torchside PLASMA 5 PINS; 等离子中央插头/5针 | |
