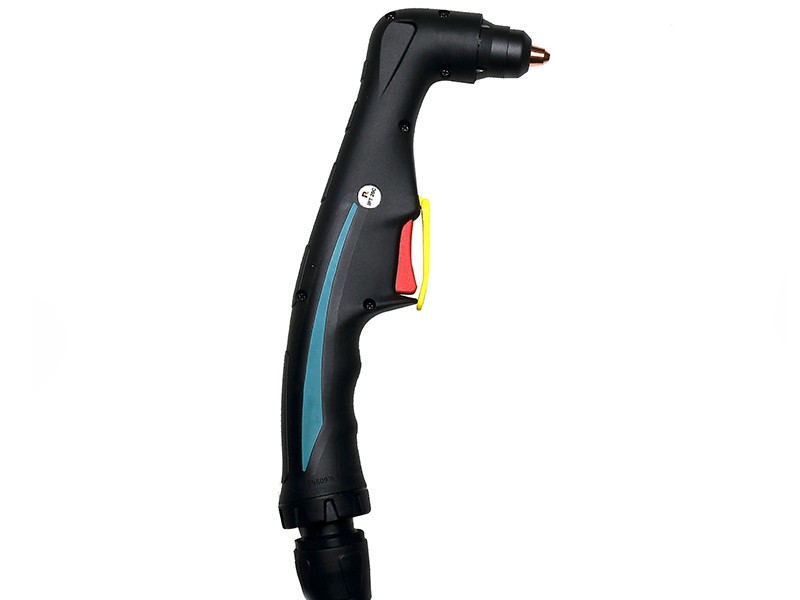

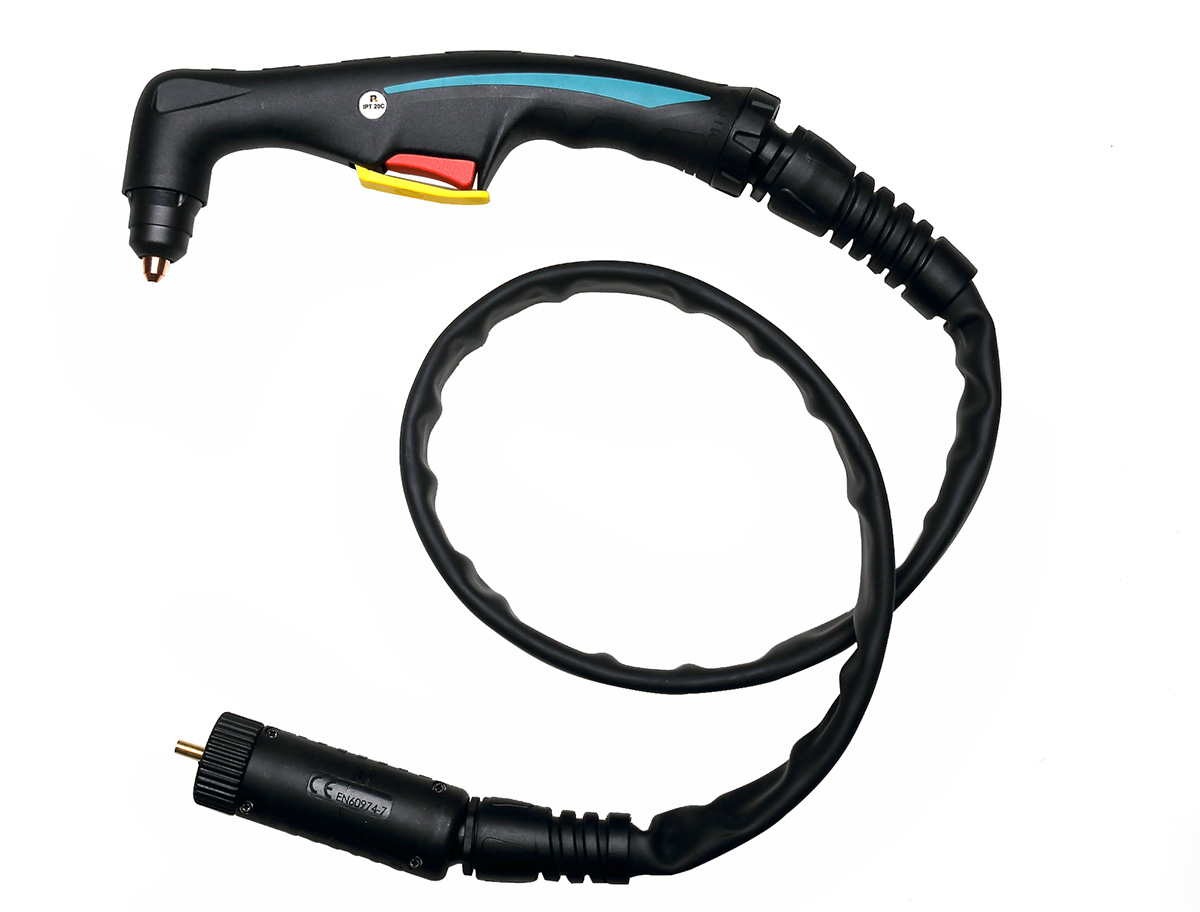

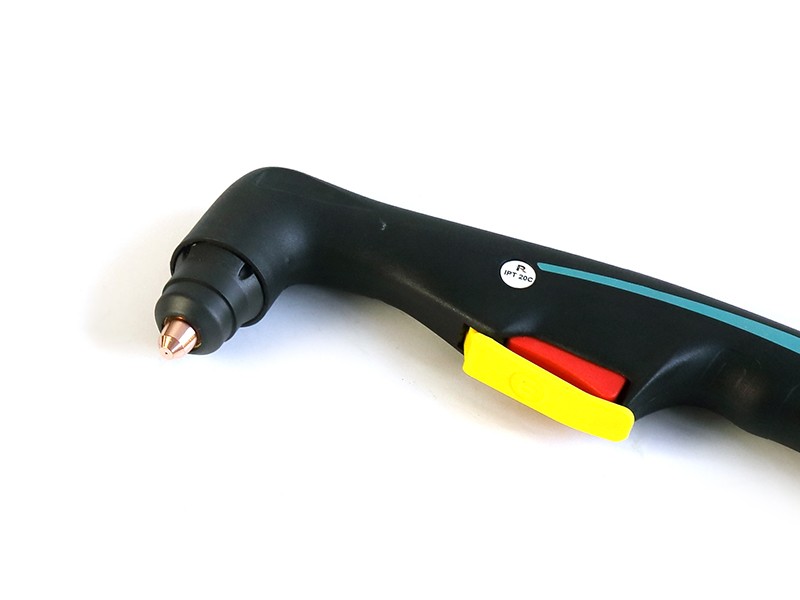

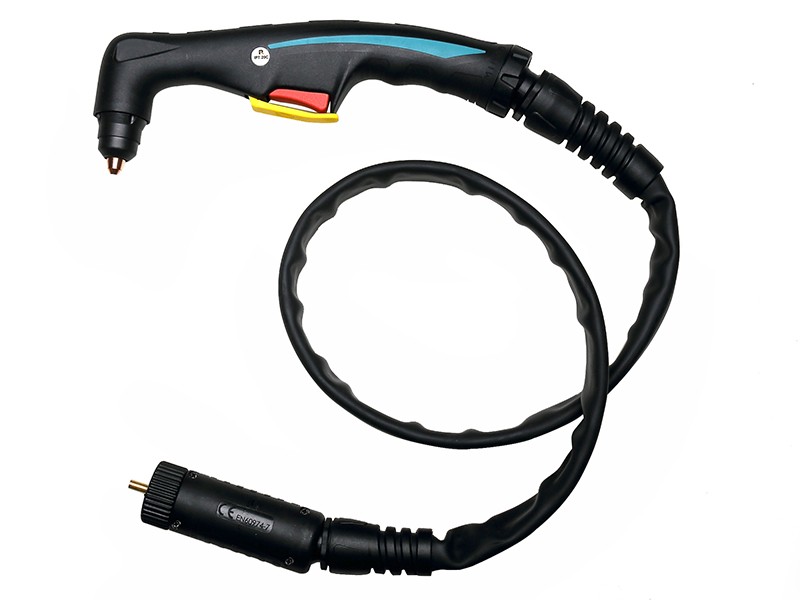

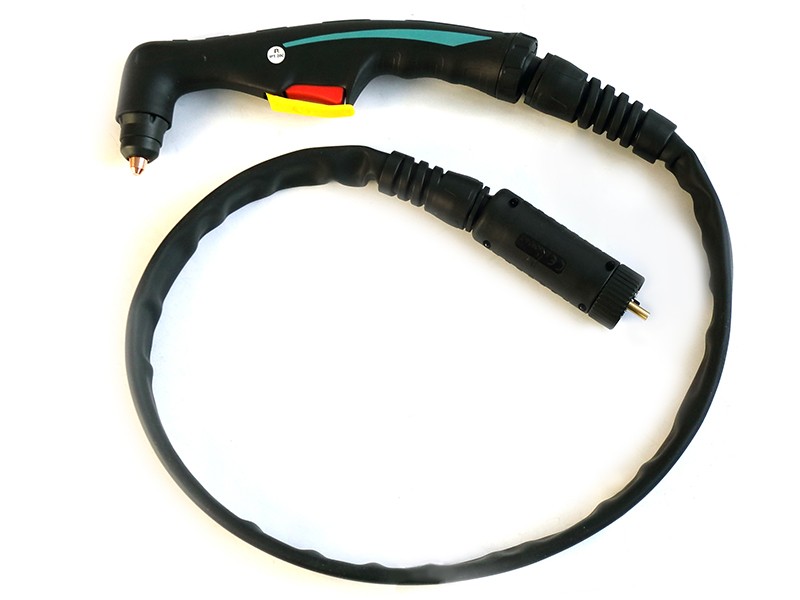

RHK IPT20C Plasma Cutting Torch
RHK IPT20C Plasma Cutting Torch
RHK IPT20C Plasma Cutting Torch
RHK IPT20C Plasma Cutting Torch
RHK IPT20C Plasma Cutting Torch
RHK IPT20C Plasma Cutting Torch
Language
- FAQ
- Solutions
- Media Center
- Customers
 （带“●”为标准配置 / With " ●" is the standard configuration） | |||||||||||||
| Position Code | Ref. | Description | |||||||||||
| 1 | Outside nozzle;外喷嘴 | ||||||||||||
| 1.1 ● | JWT0673-03 | 60389K | Outside nozzle IPT20C 2 holes /bakelite; 外喷嘴 IPT20C 2孔 /胶木 | ||||||||||
| 1.2 | JWT1673-05 | Outside nozzle IPT20C 2 holes /gray glass fiber; 外喷嘴 IPT20C 2孔/灰色玻纤 | |||||||||||
| 2 | Tip;喷嘴 | ||||||||||||
| 2.1 ● | JWV0672-06 | PD0116-06 | Tip Φ0.6mm/10-20A IPT20C;电极喷嘴 Φ0.6mm/10-20A IPT20C | ||||||||||
| 2.2 | JWV0672-08 | PD0116-08 | Tip Φ0.8mm/20-30A IPT20C;电极喷嘴 Φ0.8mm/20-30A IPT20C | ||||||||||
| 3 | Tip;喷嘴 | ||||||||||||
| 3.1 | JWV1671-06 | 51318.06 | Tip Φ0.6mm/10-20A IPT20C/Back Striking;电极喷嘴 Φ0.6mm/10-20A IPT20C/后引弧 | ||||||||||
| 3.2 | JWV1671-08 | 51318.08 | Tip Φ0.8mm/20-30A IPT20C/Back Striking;电极喷嘴 Φ0.8mm/20-30A IPT20C/后引弧 | ||||||||||
| 4 | Extended tip;加长喷嘴 | ||||||||||||
| 4.1 | WV1610-06 | 51318L.06 | Extended tip Φ0.6mm/10-20A IPT20C/Back Striking ;加长电极喷嘴/Φ0.6mm/10-20A IPT20C/后引弧 | ||||||||||
| 4.2 | JWV1610-08 | 51318L.08 | Extended tip Φ0.8mm/20-30A IPT20C/Back Striking ;加长电极喷嘴/Φ0.8mm/20-30A IPT20C/后引弧 | ||||||||||
| 5 ● | JWG1612 | 60028 | Diffuser IPT20C-60;分流器IPT20C-60 | ||||||||||
| 6 ● | JWC0671 | PR0110 | Electrode/IPT20C-60;等离子电极IPT20C-60 | ||||||||||
| 7 | JWC1059 | 52582 | Electrode/IPT20C-60/Back Striking;等离子电极 IPT20C-60/后引弧 | ||||||||||
| 8 | JWC1050 | 52583 | Extended electrode/IPT20C-60/Back Striking;加长等离子电极/IPT20C-60/后引弧 | ||||||||||
| 9 | JWA0087 | IPX-45/60 HAND TORCH HEAD;IPX-45/60手动等离子枪头 | |||||||||||
| 9a | JGU0710 | 51620.60 | "O"ring Φ18x15mm;O型圈 Φ18x15mm | ||||||||||
| 10 | JHW0049-01 | PLASMA handle manual/IPT20-60/IPX torch head;等离子手工手柄/IPT20-60/适用于IPX枪头 | |||||||||||
| 11 | JIK0733 | Protection part/Plasma/Yellow;开关保护档片/等离子用/黄色 | |||||||||||
| 12 | JIR0081 | 07301.20 | Trigger;开关 | ||||||||||
| 13 | JIK0809 | Joint/small/new type;球节套件/小/新式 | |||||||||||
| 14 | Cable assembly;电缆组 | ||||||||||||

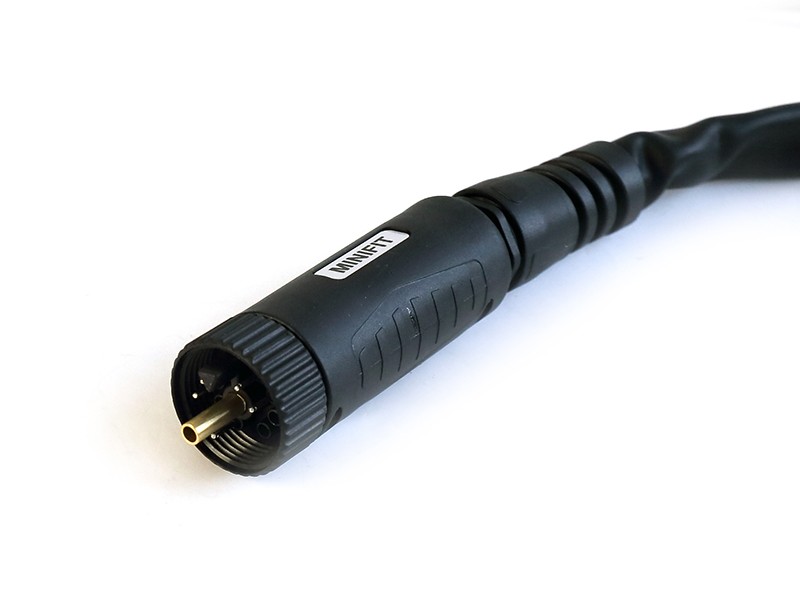

| 14.1 | JWO00902053-22 | Cable assembly/IPT20C-25/4M/2 wires/IPX torch head/Direct; 电缆组/4M/两芯控制线/IPX枪头/直接连接 | |||||||||||
| 14.2 | JWO00902055-22 | Cable assembly/IPT20C-25/4M/2 wires/IPX torch head/Direct; 电缆组/4M/四芯控制线/IPX枪头/直接连接 | |||||||||||
| 15 | JDH6017 | Spanner for Plasma;等离子枪扳手 | |||||||||||

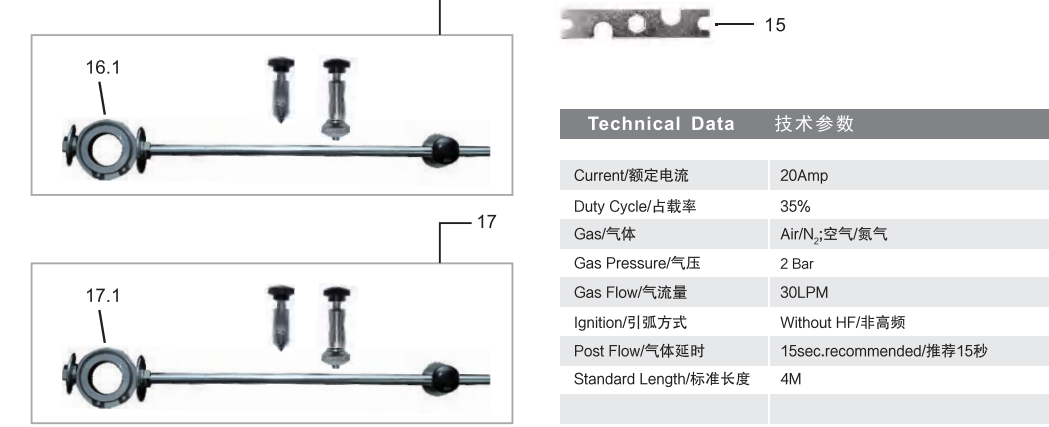

| 16 | JTN0718 | Circle cutting attachment;圆周切割附件 | |||||||||||
| 16.1 | JTN0684 | Roller stand IPT20C-60 / with spanner;滚轮支架 IPT20C-60/带扳手 | |||||||||||
