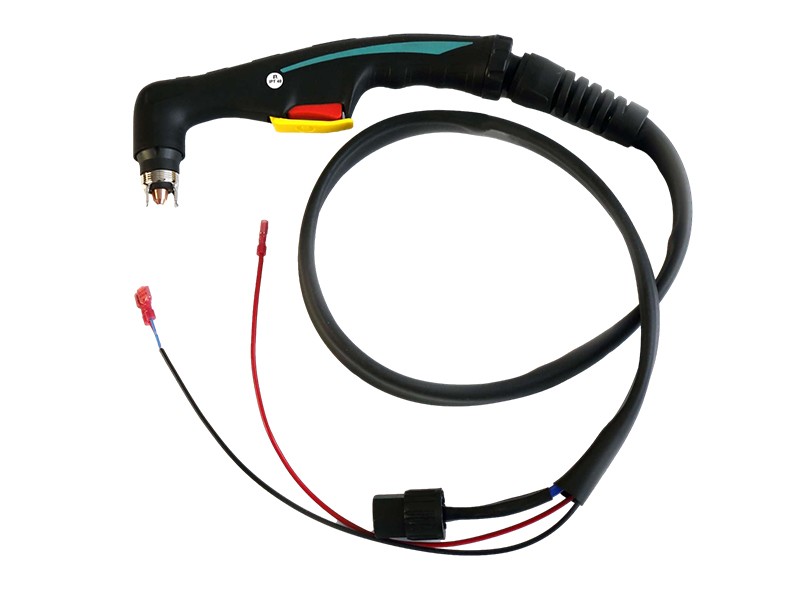

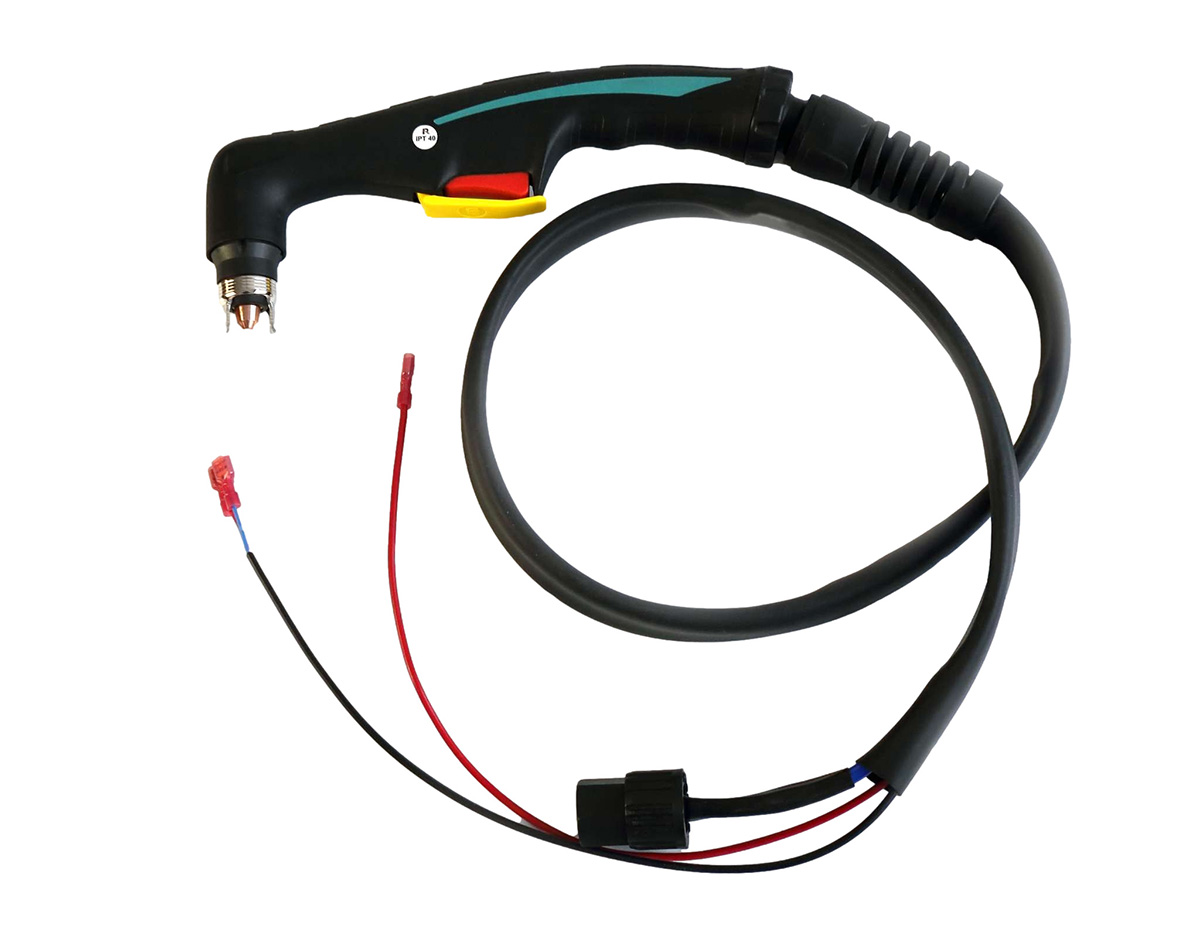

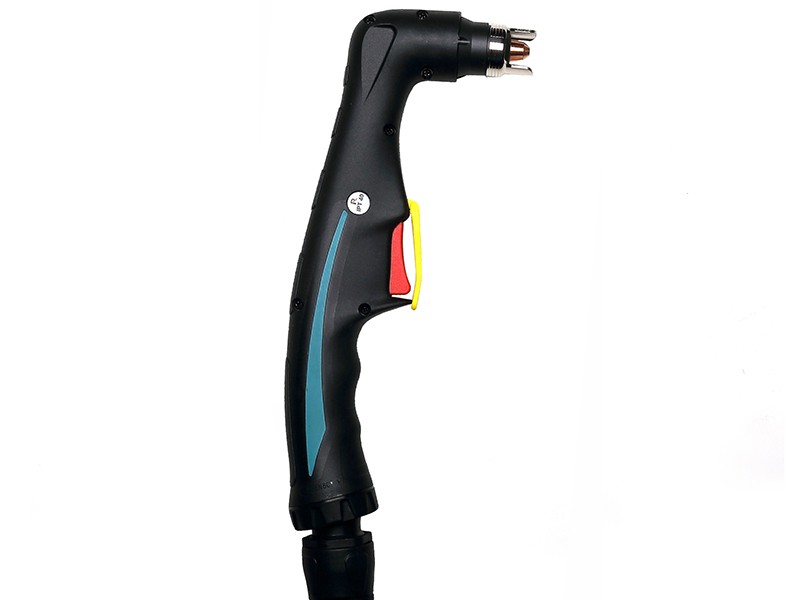

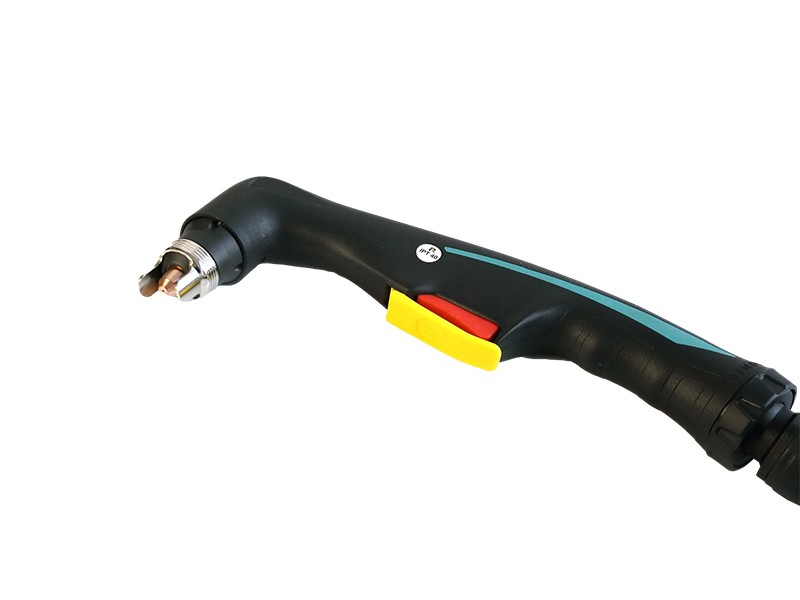

PT40 Plasma Cutting Torch
PT40 Plasma Cutting Torch
PT40 Plasma Cutting Torch
PT40 Plasma Cutting Torch
PT40 Plasma Cutting Torch
PT40 Plasma Cutting Torch
Language
- FAQ
- Solutions
- Media Center
- Customers

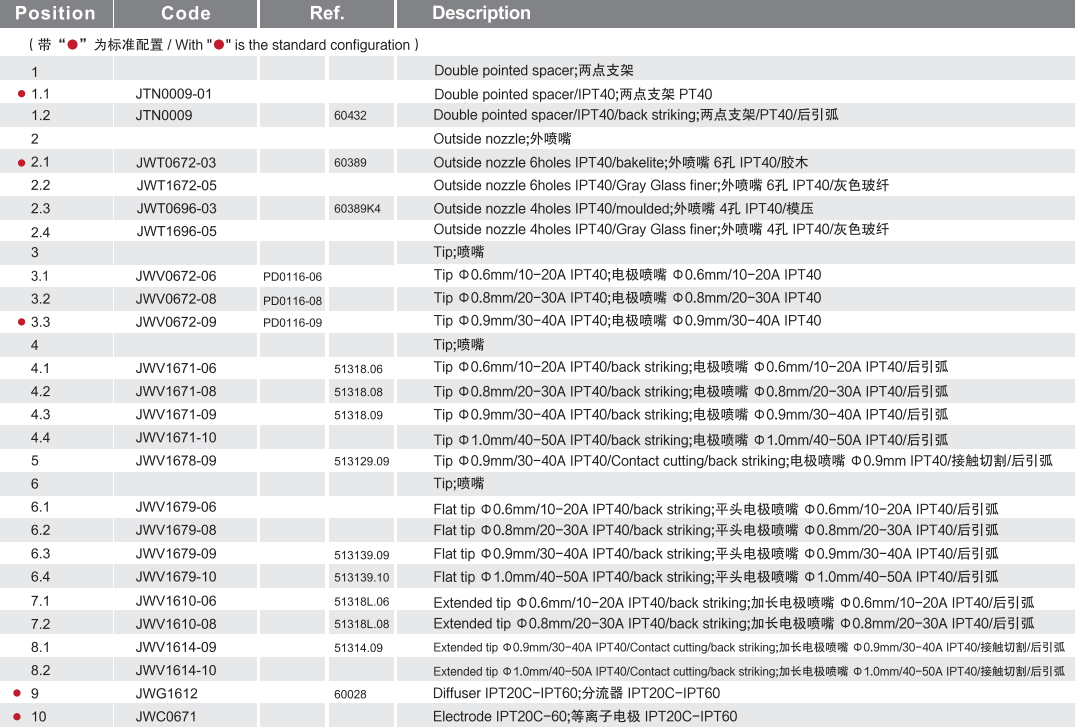

| （带“ ●”为标准配置 / With " ●" is the standard configuration） | |||||||||||
| Position Code | Ref. | Description | |||||||||
| 1 | Double pointed spacer;两点支架 | ||||||||||
| 1.1 ● | JTN0009-01 | Double pointed spacer/IPT40;两点支架 PT40 | |||||||||
| 1.2 | JTN0009 | 60432 | Double pointed spacer/IPT40/back striking;两点支架/PT40/后引弧 | ||||||||
| 2 | Outside nozzle;外喷嘴 | ||||||||||
| 2.1 ● | JWT0672-03 | 60389 | Outside nozzle 6holes IPT40/bakelite;外喷嘴 6孔 IPT40/胶木 | ||||||||
| 2.2 | JWT1672-05 | Outside nozzle 6holes IPT40/Gray Glass finer;外喷嘴 6孔 IPT40/灰色玻纤 | |||||||||
| 2.3 | JWT0696-03 | 60389K4 | Outside nozzle 4holes IPT40/moulded;外喷嘴 4孔 IPT40/模压 | ||||||||
| 2.4 | JWT1696-05 | Outside nozzle 4holes IPT40/Gray Glass finer;外喷嘴 4孔 IPT40/灰色玻纤 | |||||||||
| 3 | Tip;喷嘴 | ||||||||||
| 3.1 | JWV0672-06 | PD0116-06 | Tip Φ0.6mm/10-20A IPT40;电极喷嘴 Φ0.6mm/10-20A IPT40 | ||||||||
| 3.2 | JWV0672-08 | PD0116-08 | Tip Φ0.8mm/20-30A IPT40;电极喷嘴 Φ0.8mm/20-30A IPT40 | ||||||||
| 3.3 ● | IJWV0672-09 | PD0116-09 | Tip Φ0.9mm/30-40A IPT40;电极喷嘴 Φ0.9mm/30-40A IPT40 | ||||||||
| 4 | Tip;喷嘴 | ||||||||||
| 4.1 | JWV1671-06 | 51318.06 | Tip Φ0.6mm/10-20A IPT40/back striking;电极喷嘴 Φ0.6mm/10-20A IPT40/后引弧 | ||||||||
| 4.2 | JWV1671-08 | 51318.08 | Tip Φ0.8mm/20-30A IPT40/back striking;电极喷嘴 Φ0.8mm/20-30A IPT40/后引弧 | ||||||||
| 4.3 | JWV1671-09 | 51318.09 | Tip Φ0.9mm/30-40A IPT40/back striking;电极喷嘴 Φ0.9mm/30-40A IPT40/后引弧 | ||||||||
| 4.4 | JWV1671-10 | Tip Φ1.0mm/40-50A IPT40/back striking;电极喷嘴 Φ1.0mm/40-50A IPT40/后引弧 | |||||||||
| 5 | JWV1678-09 | 513129.09 | Tip Φ0.9mm/30-40A IPT40/Contact cutting/back striking;电极喷嘴 Φ0.9mm IPT40/接触切割/后引弧 | ||||||||
| 6 | Tip;喷嘴 | ||||||||||
| 6.1 | JWV1679-06 | Flat tip Φ0.6mm/10-20A IPT40/back striking;平头电极喷嘴 Φ0.6mm/10-20A IPT40/后引弧 | |||||||||
| 6.2 | JWV1679-08 | Flat tip Φ0.8mm/20-30A IPT40/back striking;平头电极喷嘴 Φ0.8mm/20-30A IPT40/后引弧 | |||||||||
| 6.3 | JWV1679-09 | 513139.09 | Flat tip Φ0.9mm/30-40A IPT40/back striking;平头电极喷嘴 Φ0.9mm/30-40A IPT40/后引弧 | ||||||||
| 6.4 | JWV1679-10 | 513139.10 | Flat tip Φ1.0mm/40-50A IPT40/back striking;平头电极喷嘴 Φ1.0mm/40-50A IPT40/后引弧 | ||||||||
| 7 | Tip;喷嘴 | ||||||||||
| 7.1 | JWV1610-06 | 51318L.06 | Extended tip Φ0.6mm/10-20A IPT40/back striking;加长电极喷嘴 Φ0.6mm/10-20A IPT40/后引弧 | ||||||||
| 7.2 | JWV1610-08 | 51318L.08 | Extended tip Φ0.8mm/20-30A IPT40/back striking;加长电极喷嘴 Φ0.8mm/20-30A IPT40/后引弧 | ||||||||
| 8 | Tip;喷嘴 | ||||||||||
| 8.1 | JWV1614-09 | 51314.09 | Extended tip Φ0.9mm/30-40A IPT40/Contact cutting/back striking;加长电极喷嘴 Φ0.9mm/30-40A IPT40/接触切割/后引弧 | ||||||||
| 8.2 | JWV1614-10 | Extended tip Φ1.0mm/40-50A IPT40/Contact cutting/back striking;加长电极喷嘴 Φ1.0mm/40-50A IPT40/接触切割/后引弧 | |||||||||
| 9 ● | JWG1612 | 60028 | Diffuser IPT20C-IPT60;分流器 IPT20C-IPT60 | ||||||||
| 10 ● | JWC0671 | PR0110 | Electrode IPT20C-60;等离子电极 IPT20C-IPT60 | ||||||||

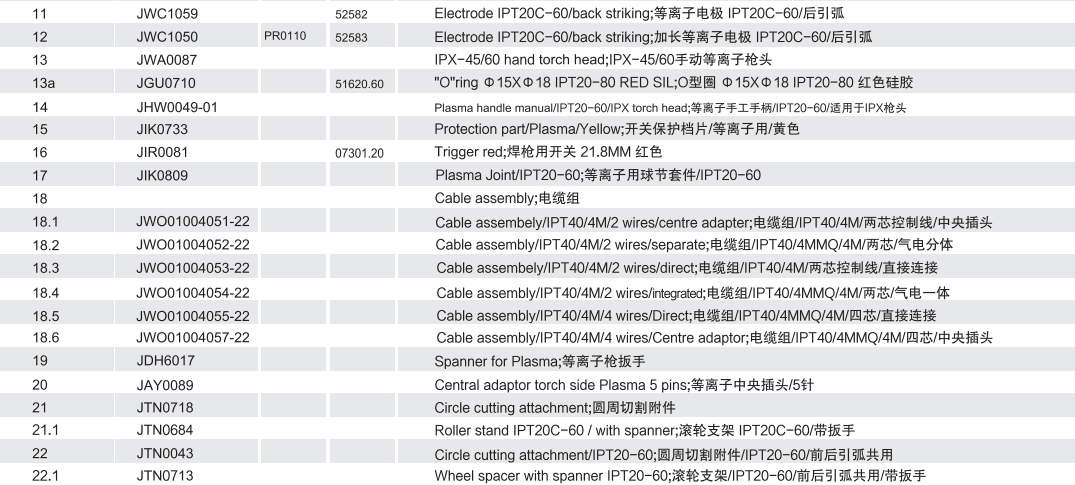

| 11 ● | JWC1059 | 52582 | Electrode IPT20C-60/back striking;等离子电极 IPT20C-60/后引弧 | ||||||||
| 12 | JWC1050 | 52583 | Electrode IPT20C-60/back striking;加长等离子电极 IPT20C-60/后引弧 | ||||||||
| 13 | JWA0087 | IPX-45/60 hand torch head;IPX-45/60手动等离子枪头 | |||||||||
| 13a | JGU0710 | 51620.60 | "O"ring Φ15XΦ18 IPT20-80 RED SIL;O型圈 Φ15XΦ18 IPT20-80 红色硅胶 | ||||||||
| 14 | JHW0049-01 | Plasma handle manual/IPT20-60/IPX torch head;等离子手工手柄/IPT20-60/适用于IPX枪头 | |||||||||
| 15 | JIK0733 | Protection part/Plasma/Yellow;开关保护档片/等离子用/黄色 | |||||||||
| 16 | JIR0081 | 07301.20 | Trigger red;焊枪用开关 21.8MM 红色 | ||||||||
| 17 JIK0809 Plasma Joint/IPT20-60;等离子用球节套件/IPT20-60 | |||||||||||
| 18 Cable assembly;电缆组 | |||||||||||
| 18.1 JWO01004051-22 Cable assembly/IPT40/4M/2 wires/Direct;电缆组/IPT40/4M/两芯/直接连接 | |||||||||||
| 18.2 JWO01004052-22 Cable assembly/IPT40/4M/2 wires/separate;电缆组/IPT40/4MMQ/4M/两芯/气电分体 | |||||||||||
| 18.3 JWO01004053-22 Cable assembly/IPT40/4M/2 wires/Centre adaptor;电缆组/IPT40/4MMQ/4M/四芯/中央插头 | |||||||||||
| 18.4 JWO01004054-22 Cable assembly/IPT40/4M/2 wires/integrated;电缆组/IPT40/4MMQ/4M/两芯/气电一体 | |||||||||||
| 18.5 JWO01004055-22 Cable assembly/IPT40/4M/4 wires/Direct;电缆组/IPT40/4MMQ/4M/四芯/直接连接 | |||||||||||
| 18.6 JWO01004057-22 Cable assembly/IPT40/4M/4 wires/Centre adaptor;电缆组/IPT40/4MMQ/4M/四芯/中央插头 | |||||||||||
| 19 JDH6017 Spanner for Plasma;等离子枪扳手 | |||||||||||
| 20 JAY0089 Central adaptor torch side Plasma 5 pins;等离子中央插头/5针 | |||||||||||
| 21 JTN0718 | Circle cutting attachment;圆周切割附件 | ||||||||||

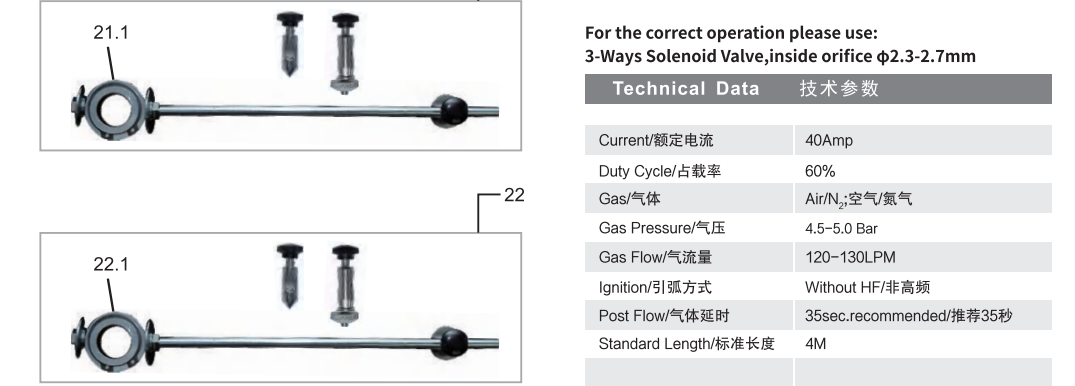

| 21.1 JTN0684 Roller stand IPT20C-60 / with spanner;滚轮支架 IPT20C-60/带扳手 | |||||||||||
