Technical | Data |
Duty Cycle | 60% |
Current | 150Amp |
Gas | AIR |
Gas Pressure | 4.5-5.0Bar |
Gas Flow | 220LPM |
lgnition | HF |
Post Flow | 150 sec.recommended |
Standard Length | 6M |
HAND TORCH
Code | Ref | Description | Code | Ref.1 | Description |
JWU6831 | Plasma cutting torch LT150/6m 1/8G; | JWU6841 | Plasma cutting torch LT150/12m 1/8G; | ||
JWU6837 | Plasma cutting torch LT150/6m 1/4G; | JWU6847 | Plasma cutting torch LT150/12m 1/4G; | ||
JWU6838 | 1576 | Plasma cutting torch LT150/6m central adaptor; | JWU6848 | Plasma cutting torch LT150/12m central adaptor; | |
JWU6839 | Plasma cutting torch LT150/6m M16×1.5; | JWU6849 | Plasma cutting torch LT150/12m M16×1.5; | ||
JWU6830 | Plasma cutting torch LT150/6m M14×1; | JWU6840 | Plasma cutting torch LT150/12m M14×1; |
MACHINE TORCH
Code | Ref | Description | Code | Ref | Description |

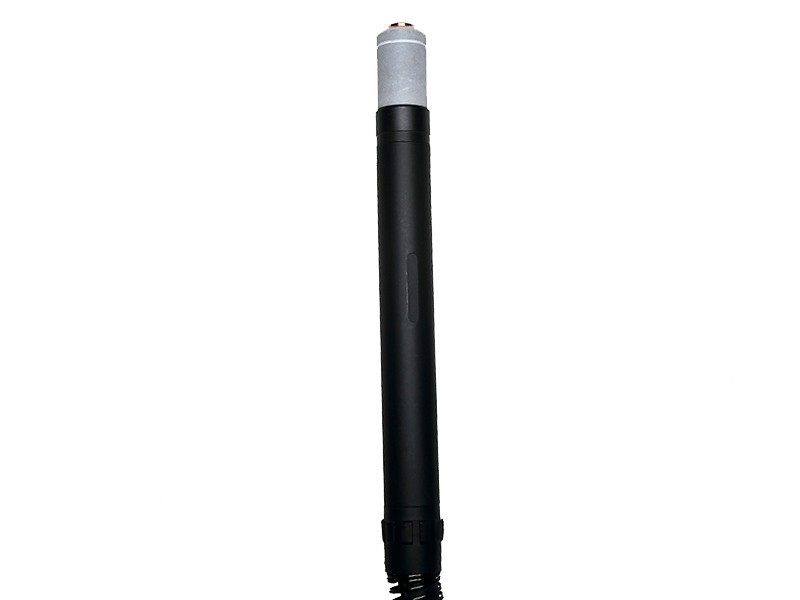

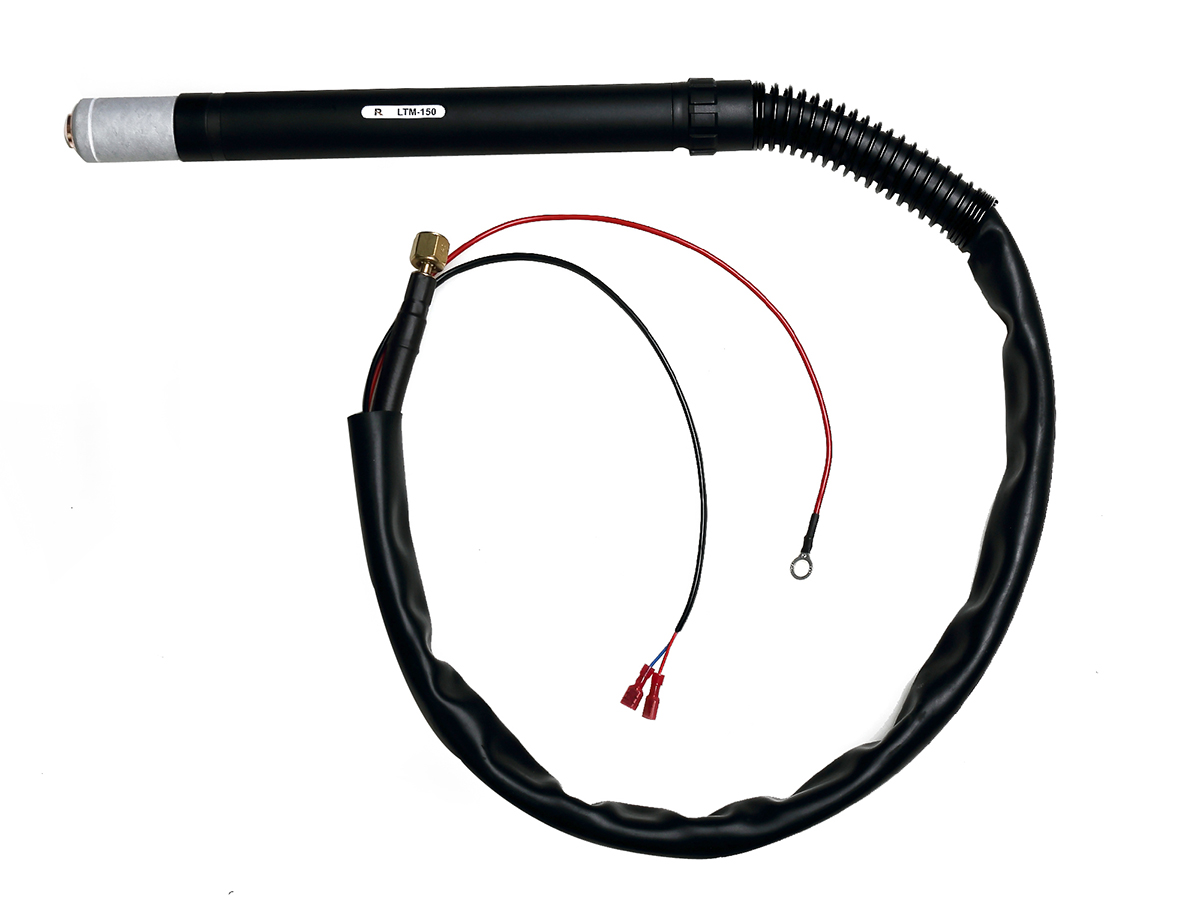

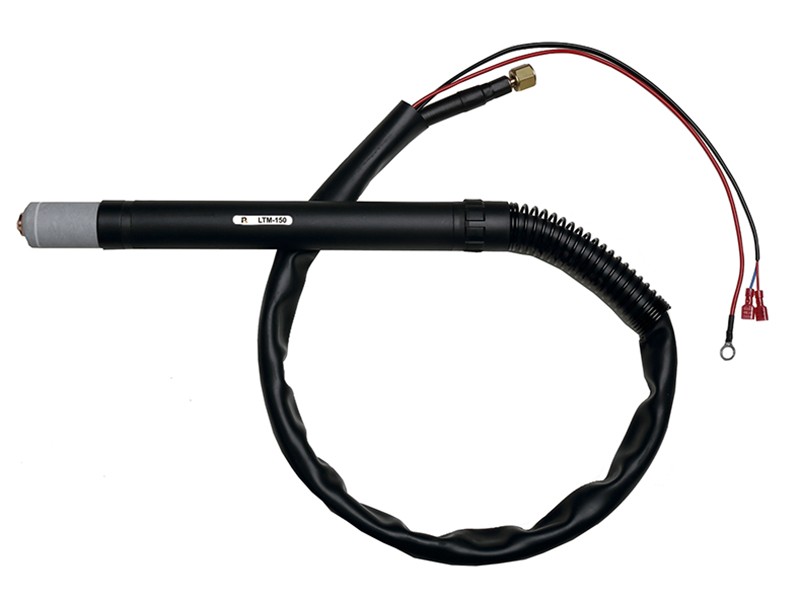

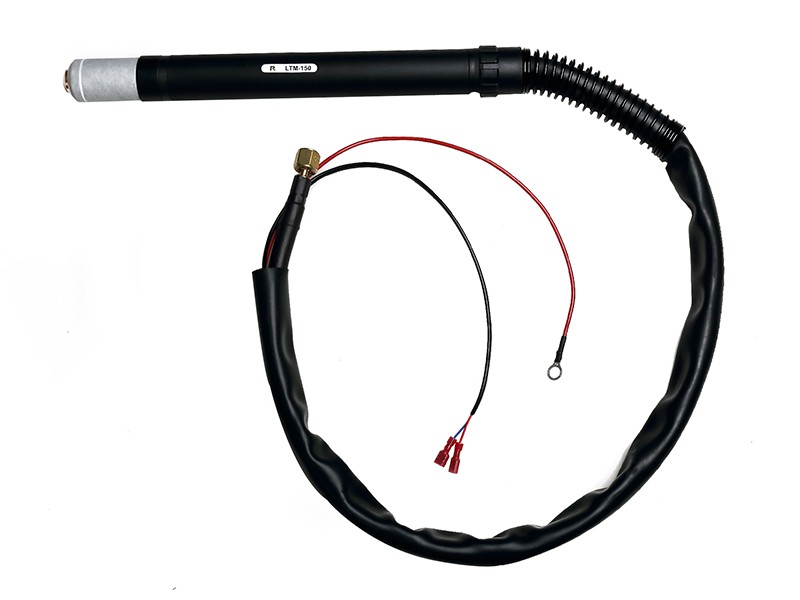

JWU6742 | Plasma cutting atuo torch LTM150/6m M16×1.5; | JWU6892 | Plasma cutting atuo torch LTM150/12m M16×1.5; | ||
JWU6746 | 1577 | Plasma cutting auto torch LTM150/6m central adaptor; | JWU6896 | Plasma cutting auto torch LTM150/12m 1/4G; | |
JWU6748 | Plasma cutting auto torch LTM150/6m 1/4G; | JWU6898 | Plasma cutting atuo torch LTM141/12m M14×1; | ||
JWU6749 | Plasma cutting atuo torch LTM150/6m M14×1; | JWU6899 | Plasma cutting atuo torch LTM150/12m M14×1; | ||
JWU6740 | 1529 | Plasma cutting atuo torch LTM150/6m 1/8G; | JWU6890 | Plasma cutting atuo torch LTM150/12m 1/8G; |

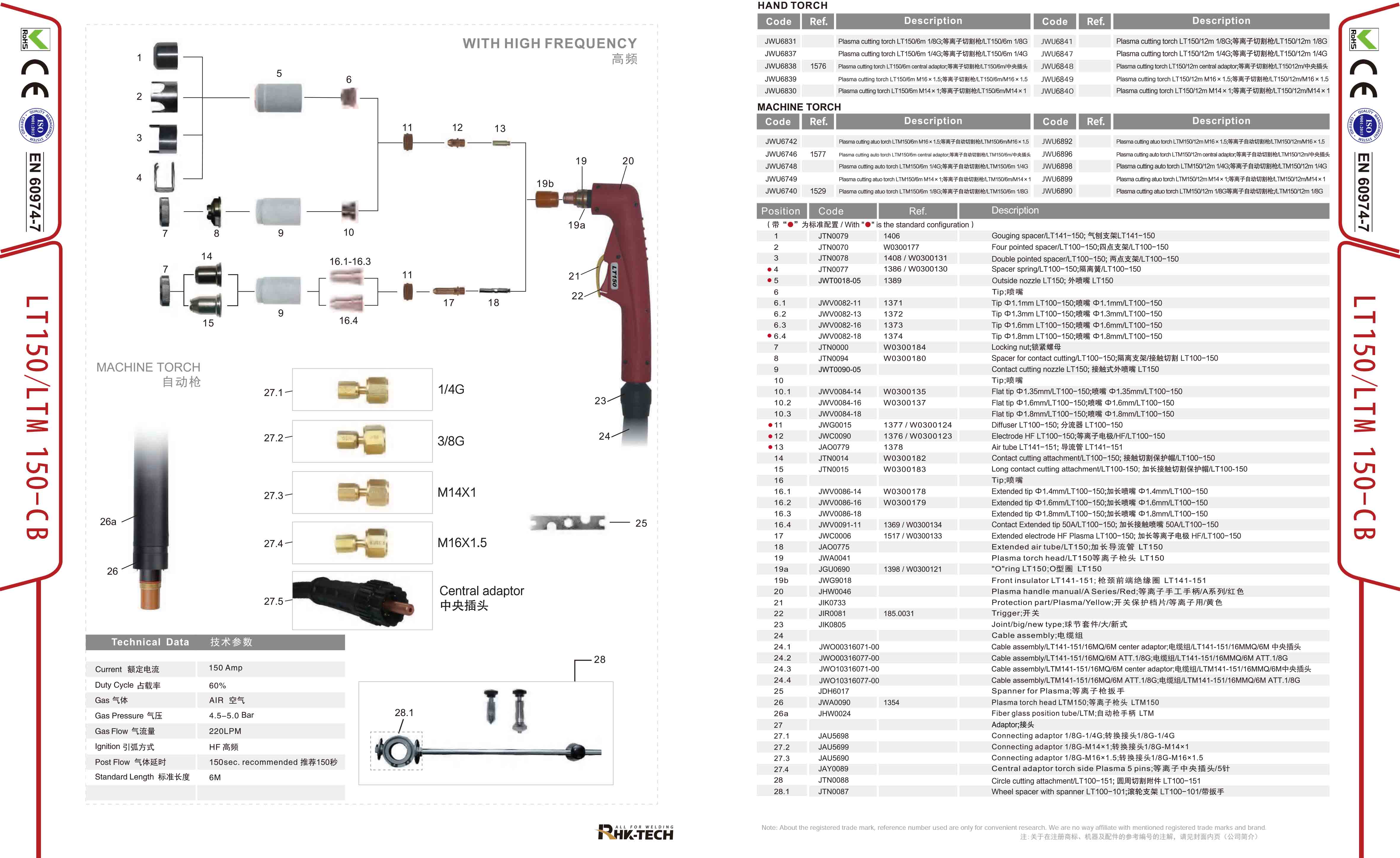

Position | Code | Ref | Description |
1 | JTN0079 | 1406 | Gouging spacer/LT141-150; |
2 | JTN0070 | W0300177 | Four pointed spacer/LT101-150; |
3 | JTN0078 | 1408 / W0300131 | Double pointed spacer/LT101-150; |
4 | JTN0077 | Spacer spring/LT100-150; | |
5 | JWT0018 | 1389 | Outside nozzle LT150; |
6 | Tip; | ||
6.1 | JWV0082-11 | 1371 | Tip Φ 1.1mm LT100-150; |
6.2 | JWV0082-13 | 1372 | Tip Φ 1.35mm LT100-150; |
6.3 | JWV0082-16 | 1373 | Tip Φ 1.6mm LT100-150; |
6.4 | JWV0082-18 | 1374 | Tip Φ 1.8mm LT100-150; |
7 | JTN0000 | W0300184 | Locking nut; |
8 | JTN0094 | W0300180 | Spacer for contact cutting/LT100-150; |
9 | JWT0090 | Contact cutting nozzle LT150; | |
10 | Tip; | ||
10.1 | JWV0084-14 | W0300135 | Flat tip Φ 1.35mm/LT100-150; |
10.2 | JWV0084-16 | W0300137 | Flat tip Φ 1.6mm/LT100-150; |
10.3 | JWV0084-18 | 51412 | Flat tip Φ 1.8mm/LT100-150; |
11 | JWG0015 | 1377 / W0300124 | Diffuser LT100-150; |
12 | JWC0090 | 1376 / W0300123 | Electrode HF LT100-150; |
13 | JAO0779 | 1378 | Air tube LT141-151; |
14 | JTN0014 | W0300182 | Contact cutting attachment/LT100-150; |
15 | JTN0015 | W0300183 | Long contact cutting attachment/LT100-150; |
16 | Tip; | ||
16.1 | JWV0086-14 | W0300178 | Extended tip Φ 1.4mm/LT100-150; |
16.2 | JWV0086-16 | W0300179 | Extended tip Φ 1.6mm/LT100-150; |
16.3 | JWV0086-18 | Extended tip Φ 1.8mm/LT100-150; | |
16.4 | JWV0091-11 | 1369 / W0300134 | Contact Extended tip 50A/LT100-150; |
17 | JWC0006 | 1517 / W0300133 | Extended electrode HF Plasma LT100-150; |
18 | JAO0775 | Extended air tube/LT150; | |
19 | JWA0041 | Plasma torch head/LT150; | |
19a | JGU0690 | 1398 / W0300121 | "O"ring LT150; |
19b | JWG9018 | Front insulator LT141-151; | |
20 | JHW0046 | Plasma handle manual/A Series/Red; | |
21 | JIK0733 | Protection part/Plasma/Yellow; | |
22 | JIR0081 | 185.0031 | Trigger; |
23 | JIK0805 | Joint/big/new type; | |
24 | Cable assembly; | ||
24.1 | JWO00316071-00 | Cable assembly/LT141-151/16MQ/6M center adaptor; | |
24.2 | JWO00316077-00 | Cable assembly/LT141-151/16MQ/6M ATT.1/8G; | |
24.3 | JWO10316071-00 | Cable assembly/LTM141-151/16MQ/6M center adaptor; | |
24.4 | JWO10316077-00 | Cable assembly/LTM141-151/16MQ/6M ATT.1/8G; | |
24.5 | JWO0600 | Cable assembly/LT141-151/6m central adaptor; | |
25 | JDH6017 | Spanner for Plasma; | |
26 | JWA0090 | 1354 | Plasma torch head LTM150; |
26a | JHW0024 | Fiber glass position tube/LTM; | |
27 | Cable assembly LTM; | ||
27.1 | JAU5698 | Connecting adaptor 1/8G-1/4G; | |
27.2 | JAU5699 | Connecting adaptor 1/8G-M14×1; | |
27.3 | JAU5690 | Connecting adaptor 1/8G-M16×1.5; | |
28 | JAY0089 | Central adaptor torch side Plasma 5 pins; | |
29 | JTN0088 | 169 | Circle cutting attachment/LT100-151; |
