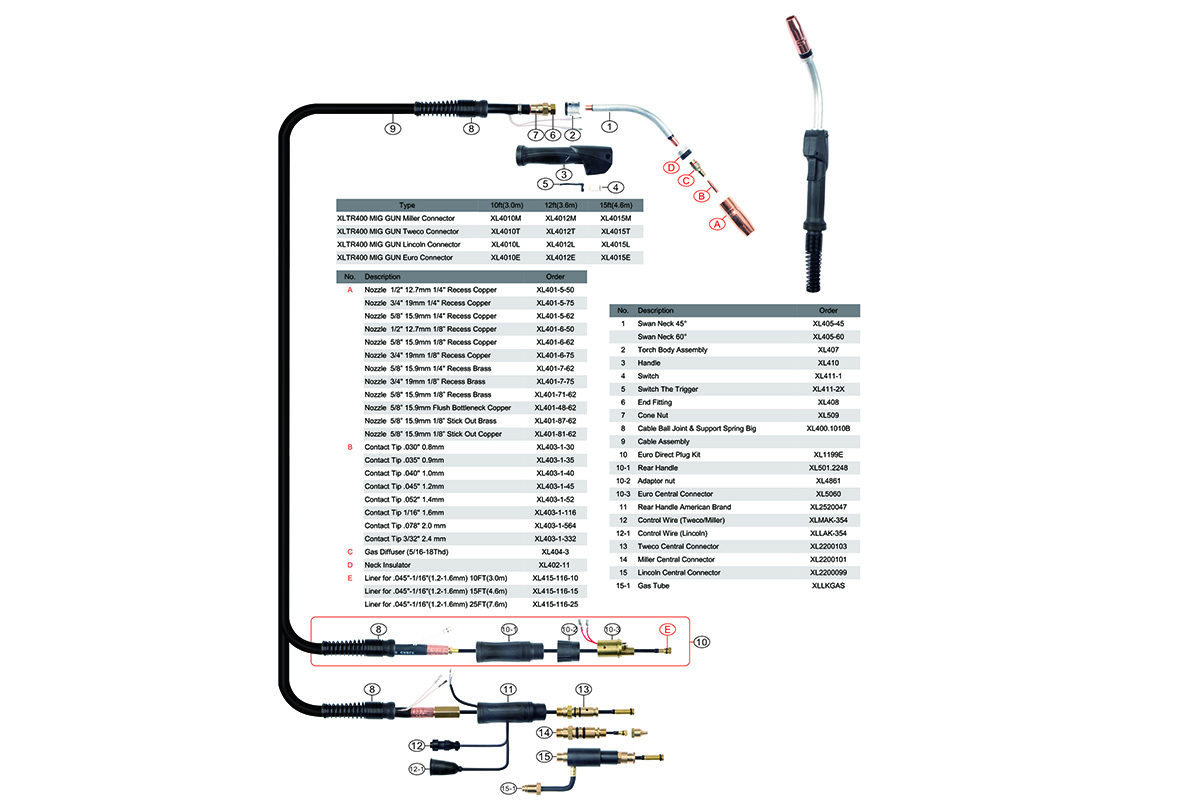

| Position | Description |
| 1 | Swan Neck 45°; Swan Neck 60° |
| 2 | Torch Body Assembly |
| 3 | Handle |
| 4 | Switch |
| 5 | Switch The Trigger |
| 6 | End Fitting |
| 7 | Cone Nut |
| 8 | Cable Ball Joint & Support Spring Big |
| 9 | Cable Assembly |
| 10 | Euro Direct Plug Kit |
| 10-1 | Rear Handle |
| 10-2 | Adaptor nut |
| 10-3 | Euro Central Connector |
| 11 | Rear Handle American Brand |
| 12 | Control Wire (Tweco/Miller) |
| 12-1 | Control Wire (Lincoln) |
| 13 | Tweco Central Connector |
| 14 | Miller Central Connector |
| 15 | Lincoln Central Connector |
| 15-1 | Gas Tube |
| A | Nozzle 1/2″ 12.7mm 1/4″ Recess Copper |
| Nozzle 3/4” 19mm 1/4” Recess Copper | |
| Nozzle 5/8” 15.9mm 1/4″ Recess Copper | |
| Nozzle 1/2” 12.7mm 1/8” Recess Copper | |
| Nozzle 5/8” 15.9mm 1/8” Recess Copper | |
| Nozzle 3/4” 19mm 1/8” Recess Copper | |
| Nozzle 5/8” 15.9mm 1/4” Recess Brass | |
| Nozzle 3/4″ 19mm 1/8” Recess Brass | |
| Nozzle 5/8″ 15.9mm 1/8” Recess Brass | |
| Nozzle 5/8” 15.9mm Flush Bottleneck Copper | |
| Nozzle 5/8” 15.9mm 1/8” Stick Out Brass | |
| Nozzle 5/8” 15.9mm 1/8” Stick Out Copper | |
| B | Contact Tip .030” 0.8mm |
| Contact Tip .035” 0.9mm | |
| Contact Tip .040” 1.0mm | |
| Contact Tip .045” 1.2mm | |
| Contact Tip .052” 1.4mm | |
| Contact Tip 1/16” 1.6mm | |
| Contact Tip .078″ 2.0 mm | |
| Contact Tip 3/32″ 2.4 mm | |
| C | Gas Diffuser (5/16-18Thd) |
| D | Nozzle Retainer |
| E | Neck Insulator |
| F | Liner for .045″-1/16″(1.2-1.6mm) 10FT(3.0m) |
| Liner for .045″-1/16″(1.2-1.6mm) 15FT(4.6m) | |
| Liner for .045″-1/16″(1.2-1.6mm) 25FT(7.6m) | |
| Technical Data | Rating: 400A CO2/300A Mixed Gases |
| Duty Cycle: 60% | |
| Wire Size: 040”-1/16”(1.0-1.6mm) | |

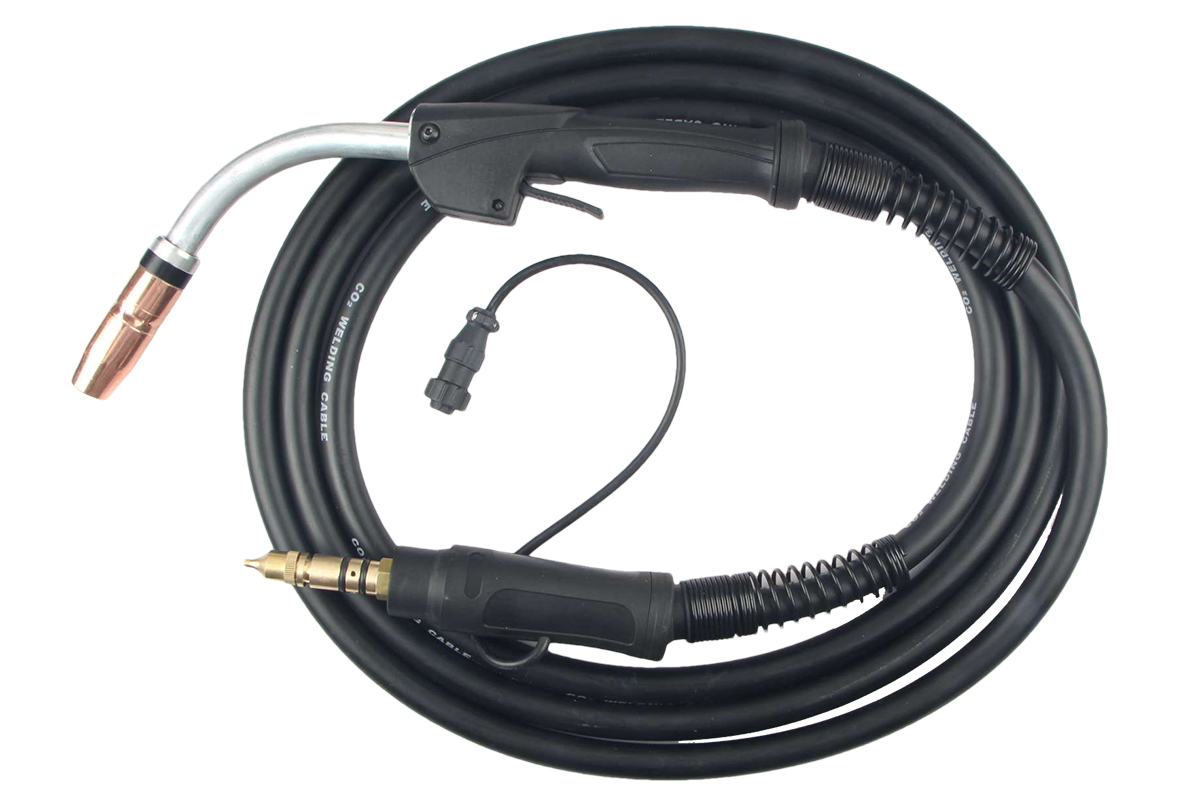

| Type | TR400 MIG GUN Miller Connector |

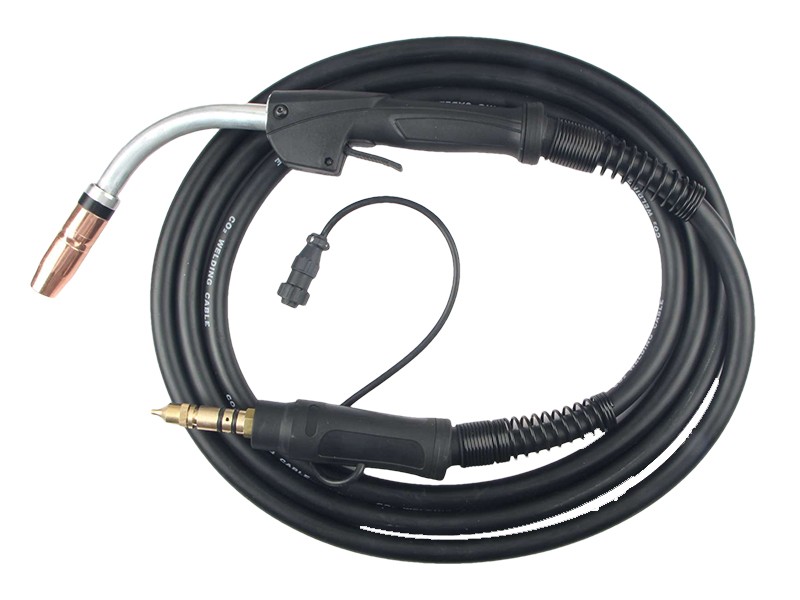

| TR400 MIG GUN Tweco Connector | |

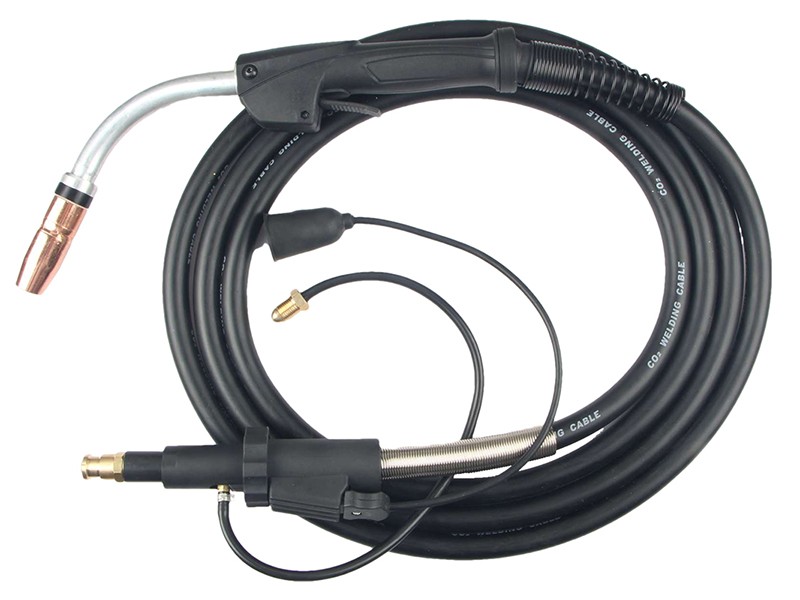

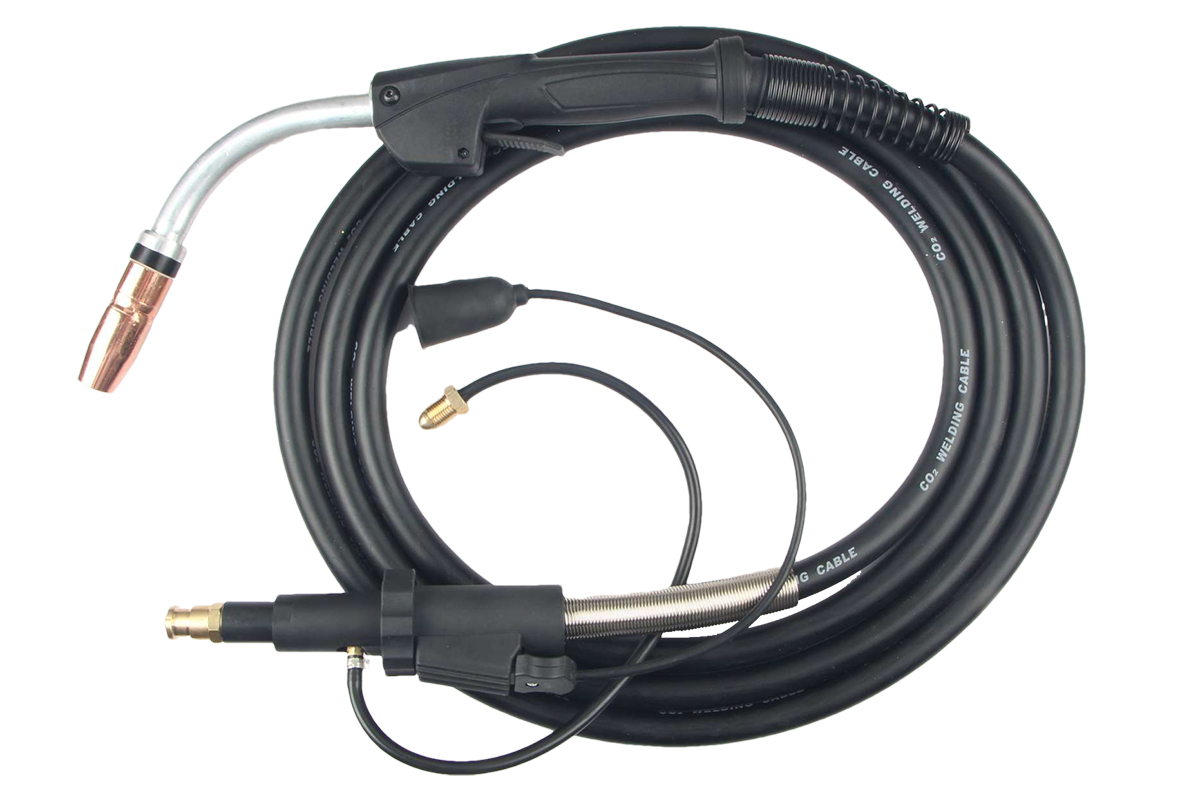

| TR400 MIG GUN Lincoln Connector | |
| TR400 MIG GUN Euro Connector |
