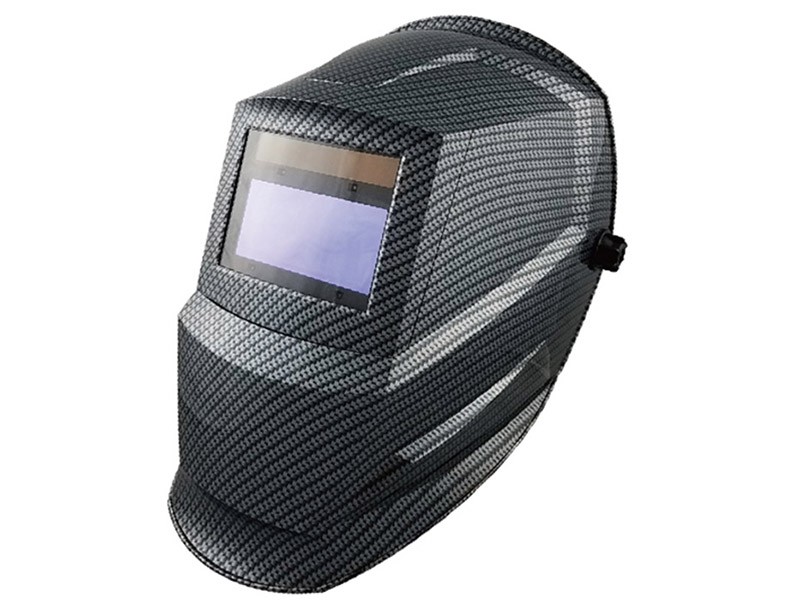

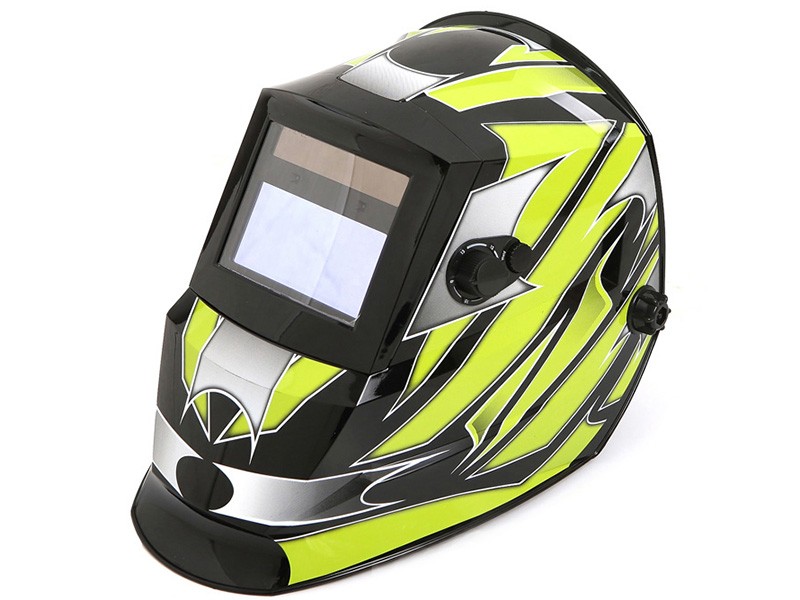

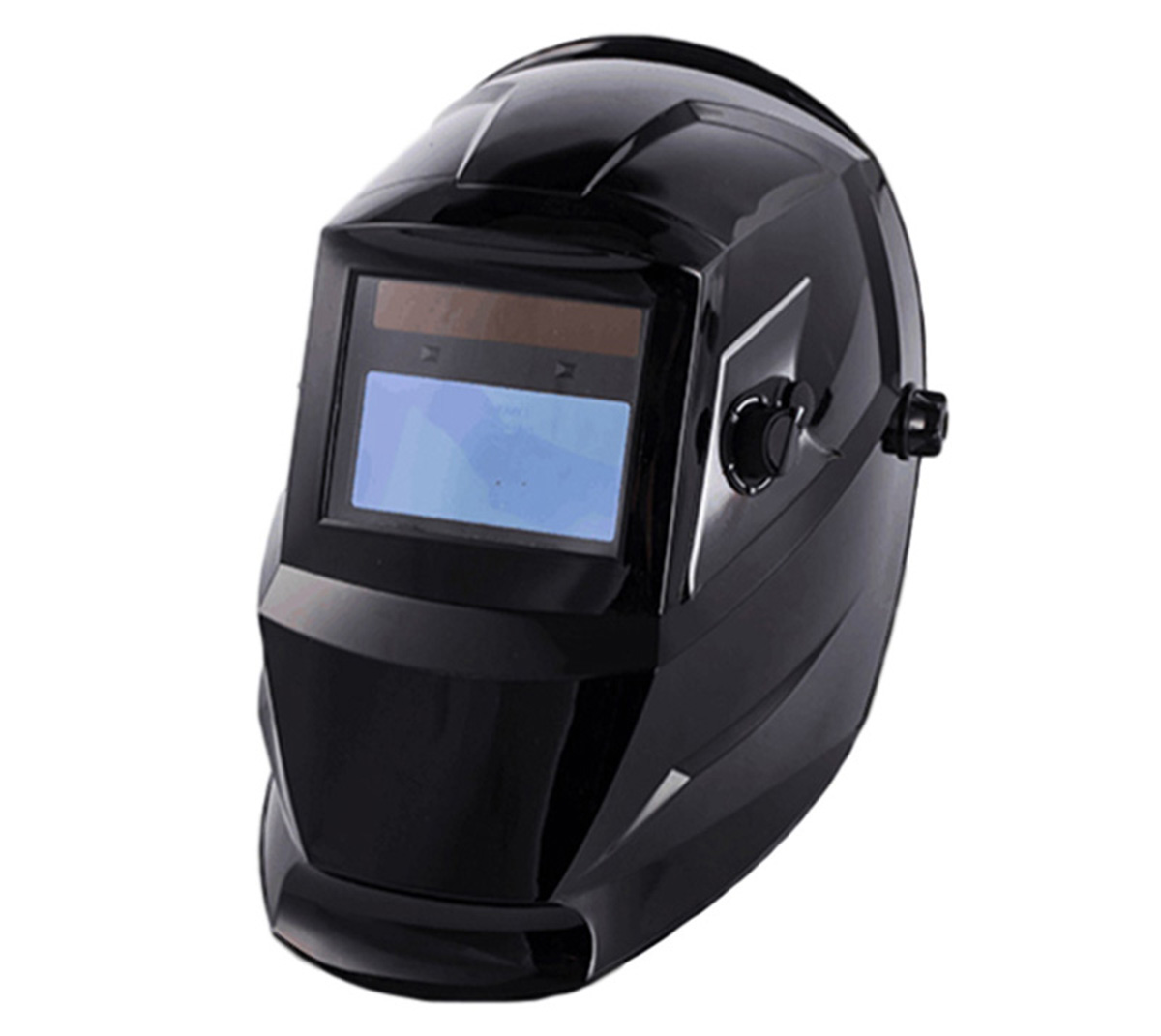

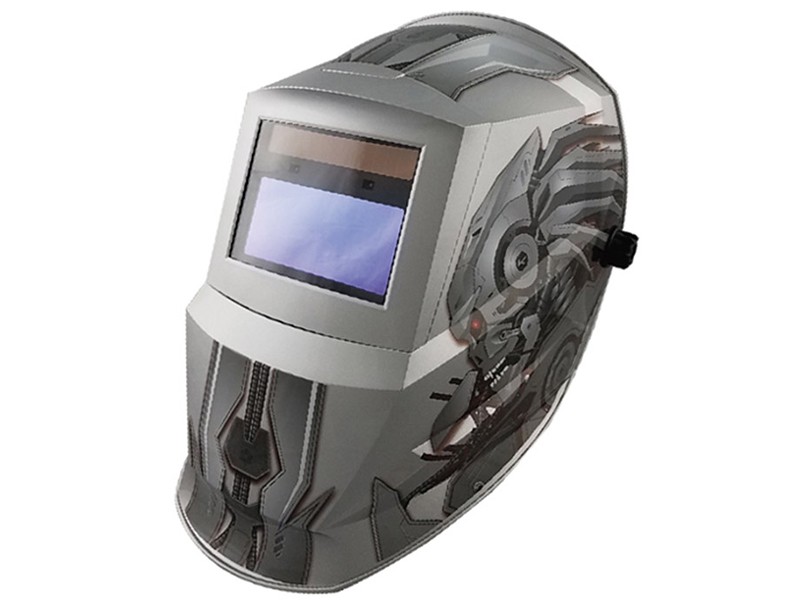

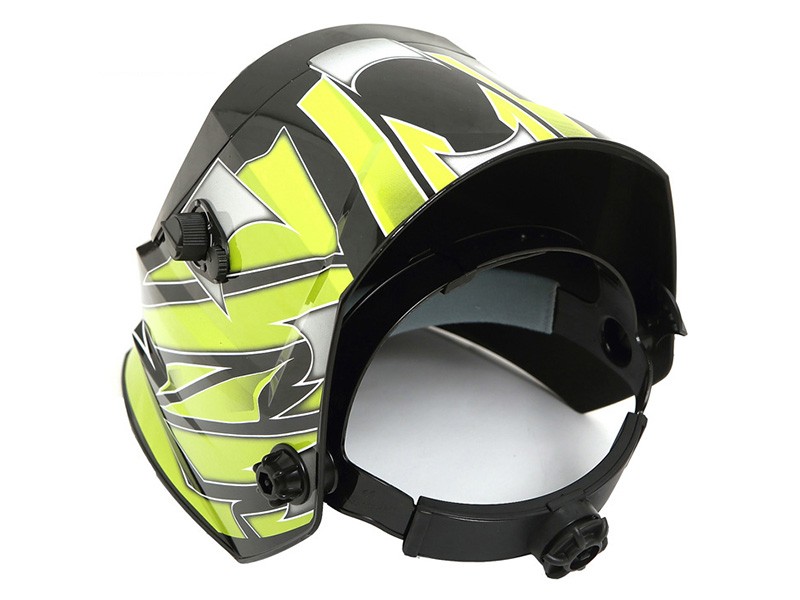

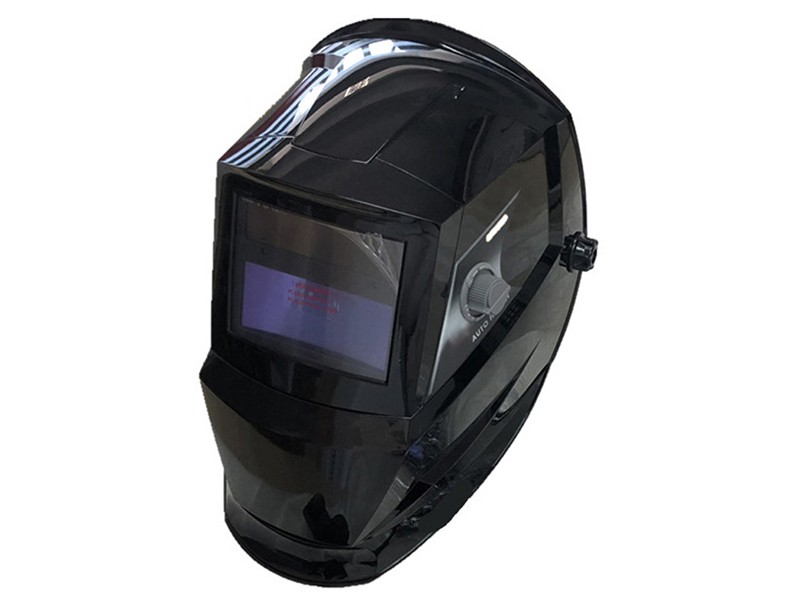

Product Description
Lightweight, modern and fashion design with high impact resistance material;

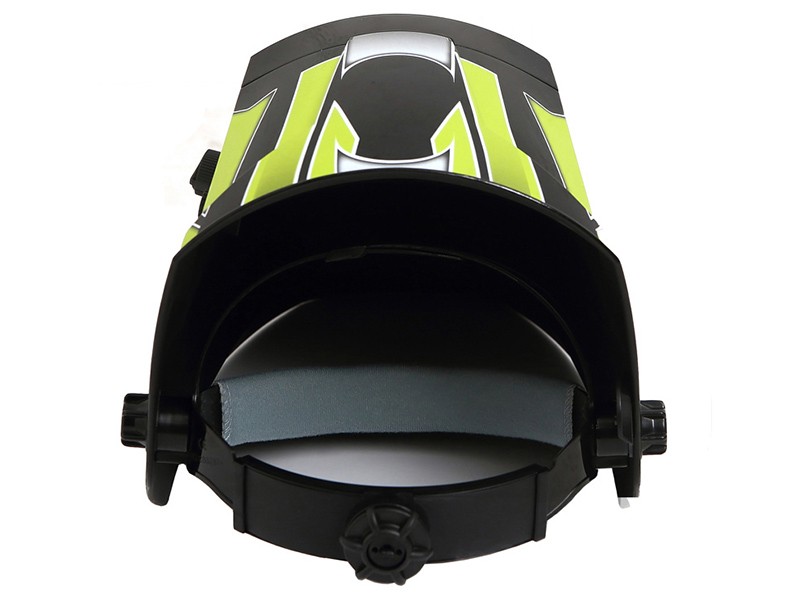

Ergonomic structure increases balance and comforts;
Outer protection lens PL-2002 110x90x1mm;
Fit for standard ADF dimension: 110x90(4.33’x3.54’) :
1122E, 1121, 1001F(I), 1001F, 1006, 1007, 1009, 1001F(G), 1010, 1010(I), 1011, 1011(I), 1021, 1021(D)
Product Parameters
| Filter Model | 1122E |
| Filter dimension | 110x90(4.33"x3.54") |
| View size | 100x60mm(3.93"x2.63") |
| CE Classification | 1/1/1/2 |
| Sensors | 4 |
| Light state | 4 |
| Dark state | Variable shade 9-13 |
| Power control | Fully automatic |

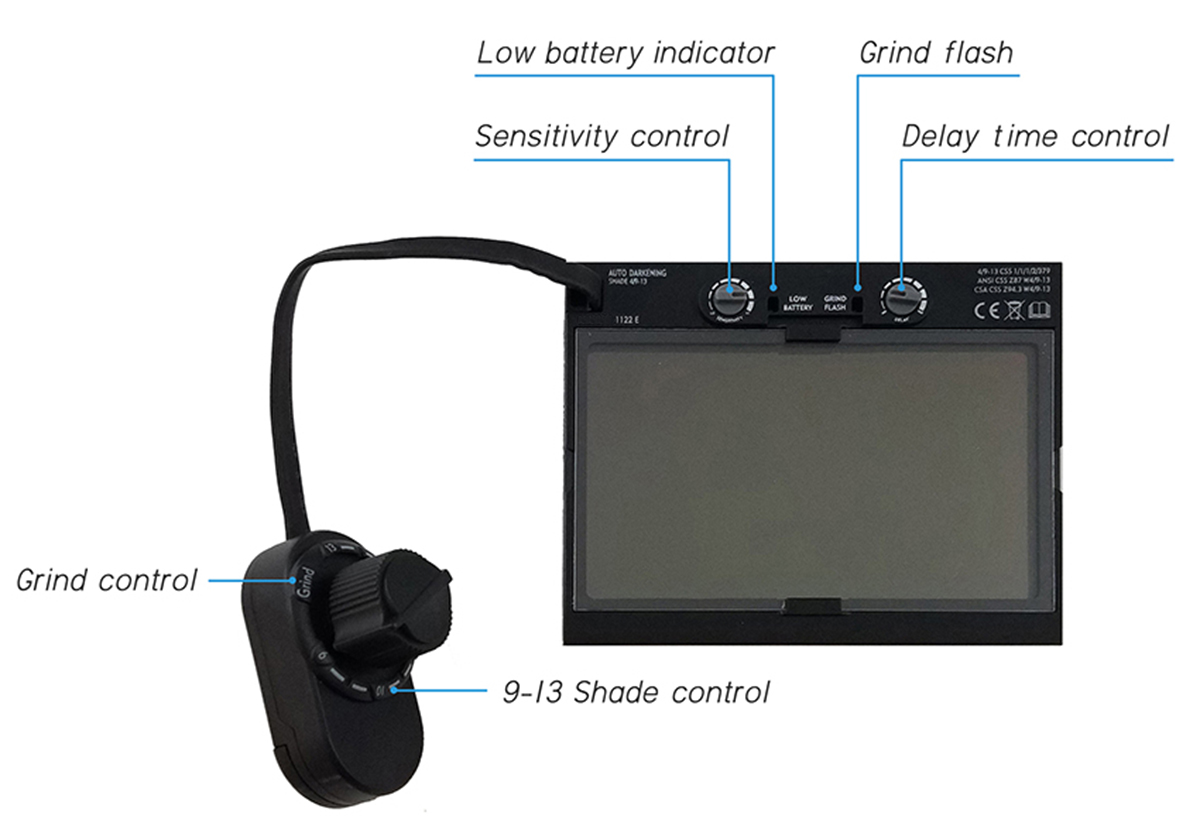

| Shade control | External |
| Switching time at 23℃ | 0.08ms |
| Sensitivity Delay time control | Adjustable (Internal) |
| Time from dark to light | 0.1-0.9s adjustable |
| Grinding function(independent switch model) | Yes |
| Grinding warning flash | Yes |
| Low battery warning indicator | Yes |
| Operation temperature | -10℃- 65℃ (14℉-149℉) |
| Storing temperature | -20℃- 85℃ (-4℉-185℉) |
| Power supply | Solar cell, replaceable battery |
| Inner protection lens | PL-5001 |
| Minimum TIG welding current | 5A |
| Maximum TIG welding current | 350A |
