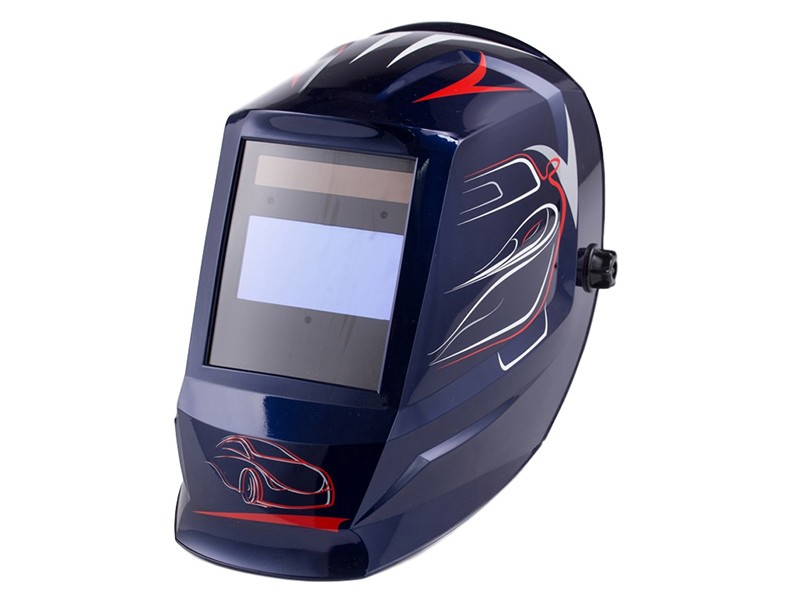

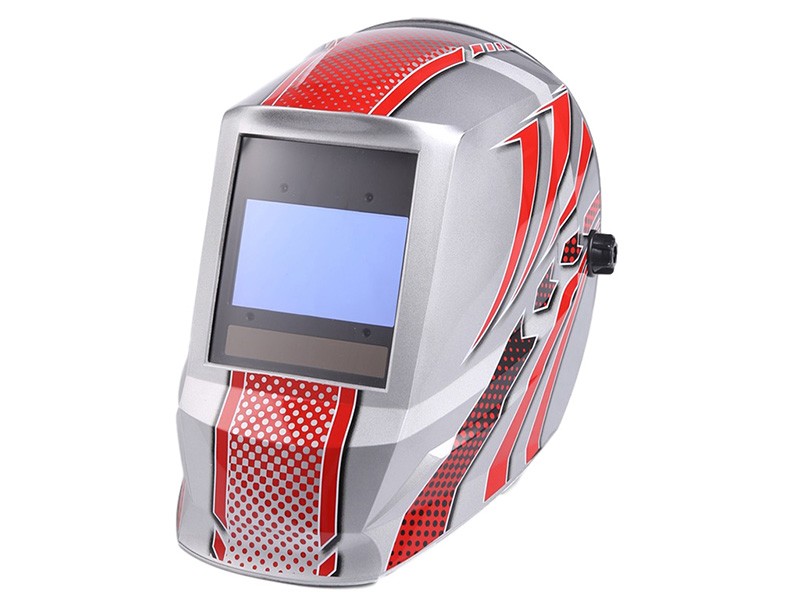

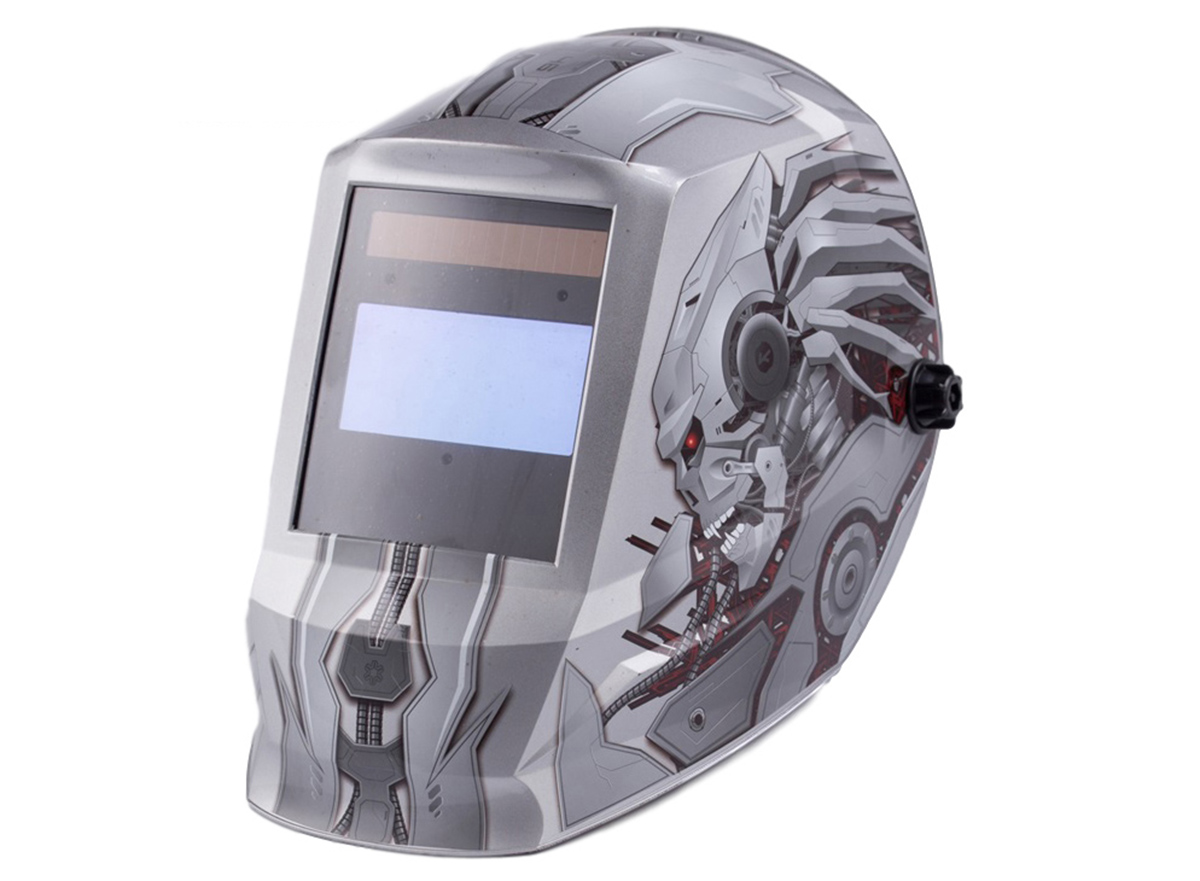

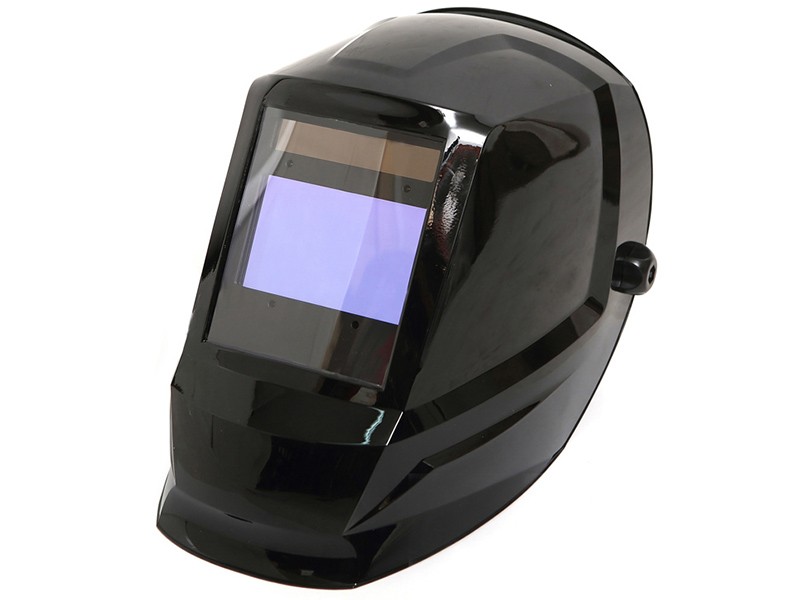

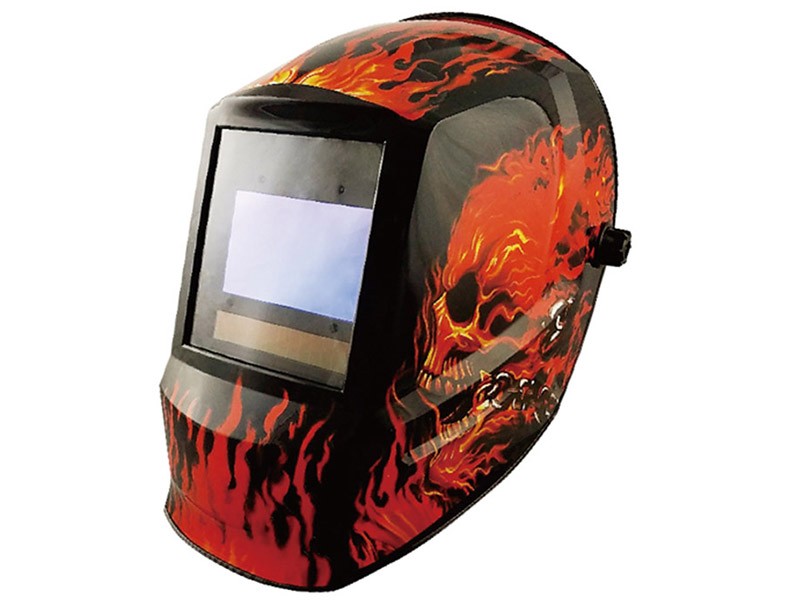

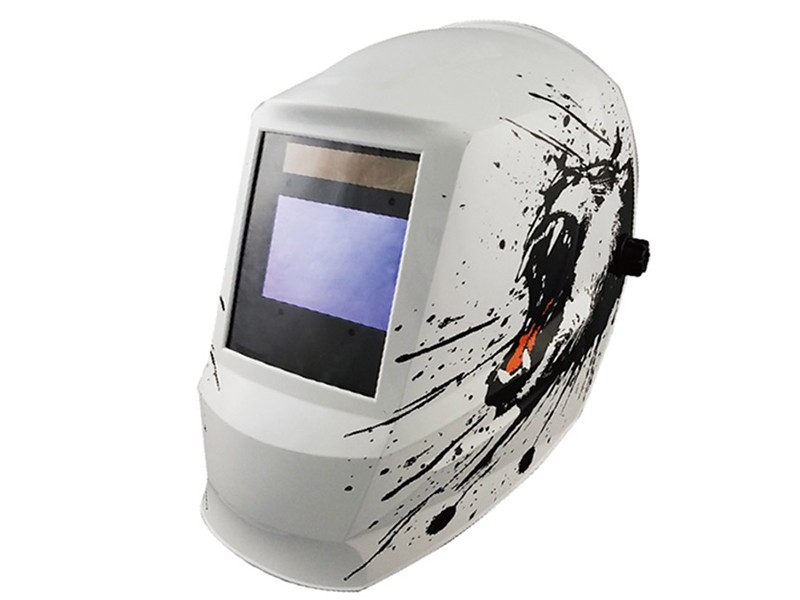

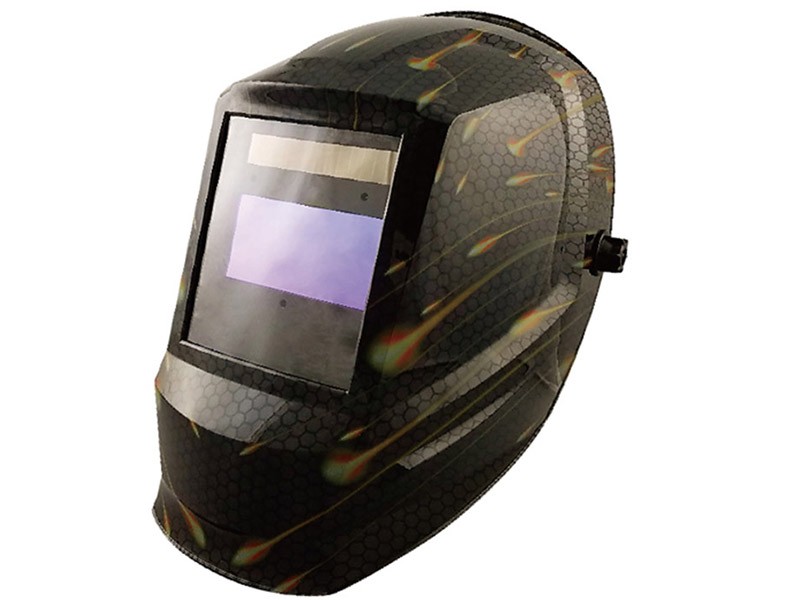

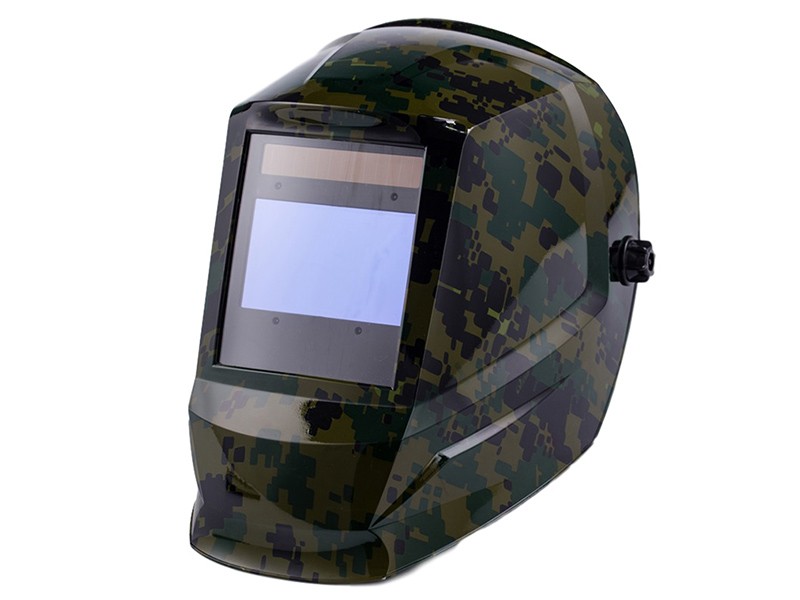

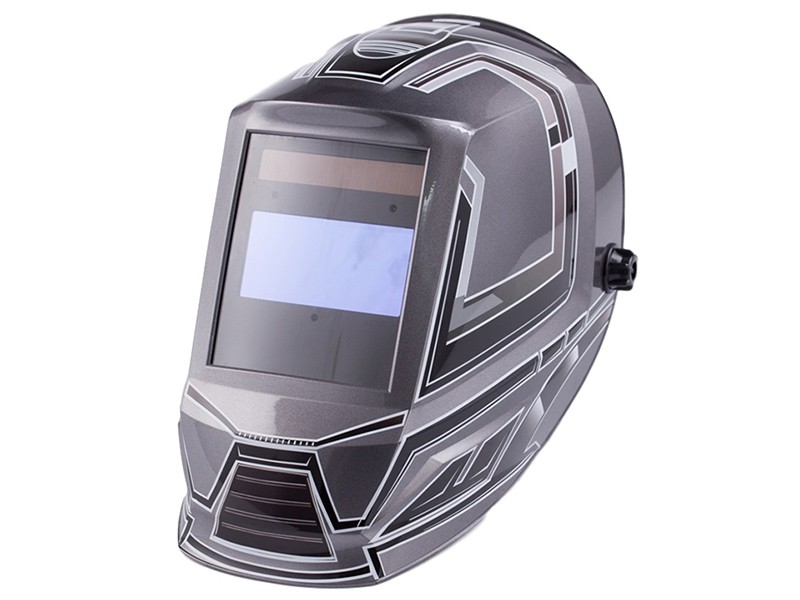

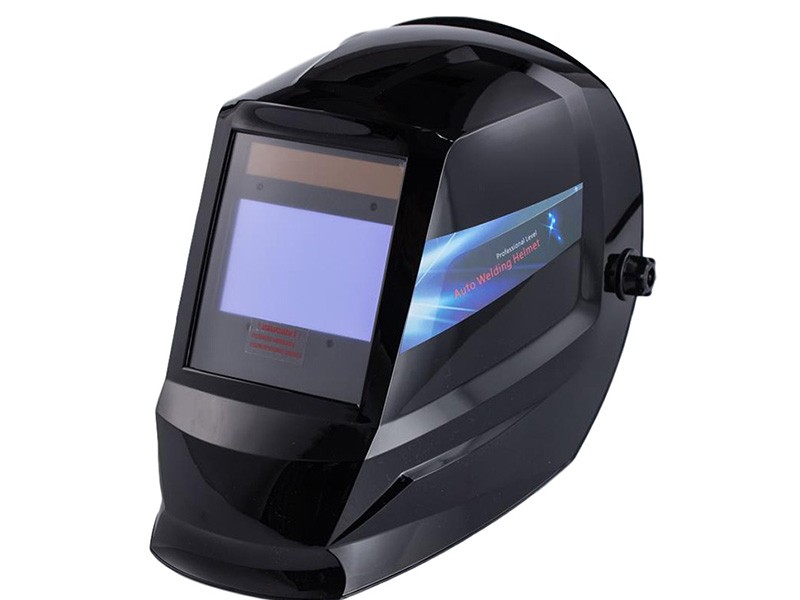

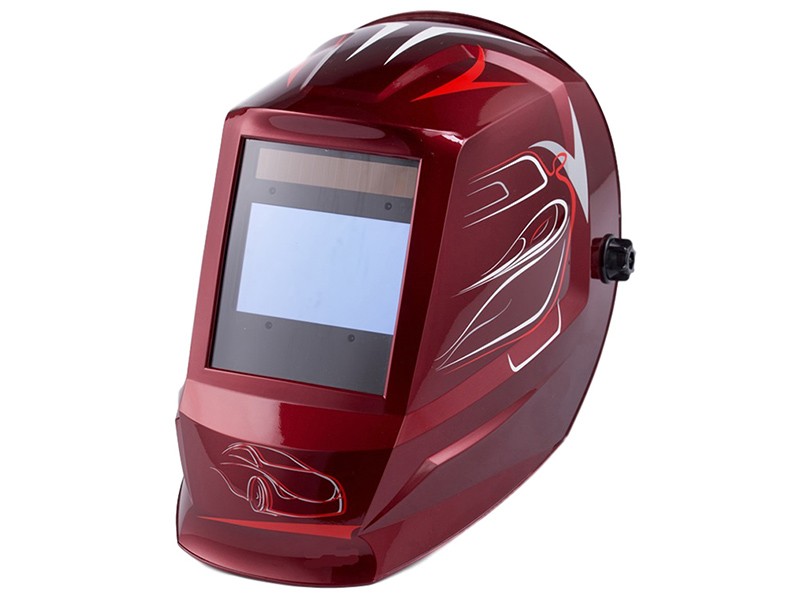

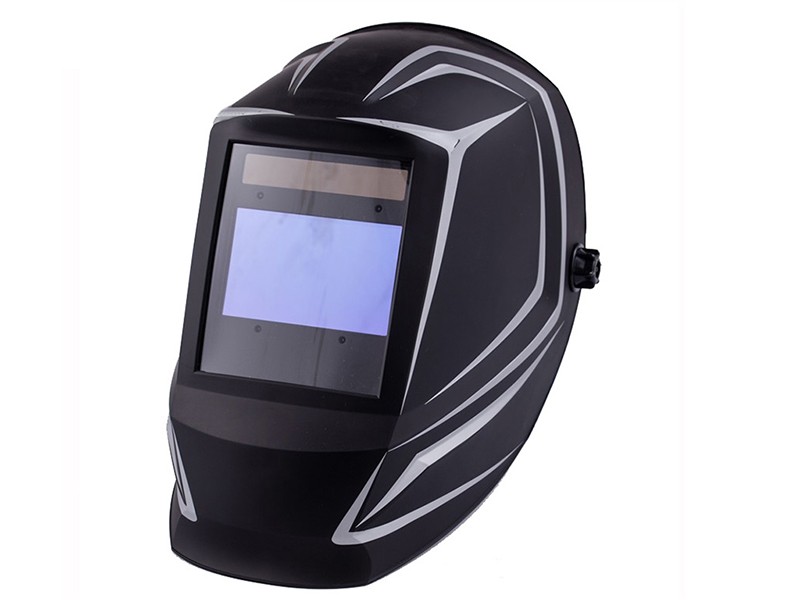

Product Description
Lightweight, modern and fashion design with high impact resistance material;
Ergonomic structure increases balance and comforts;
Outer protection lens PL-5002 114x133x1mm;
Fit for standard ADF dimension: 114x133(4.5’x5.25’) :
5122, 5122D, 5022D, 5022, 5001D, 5001, 5000

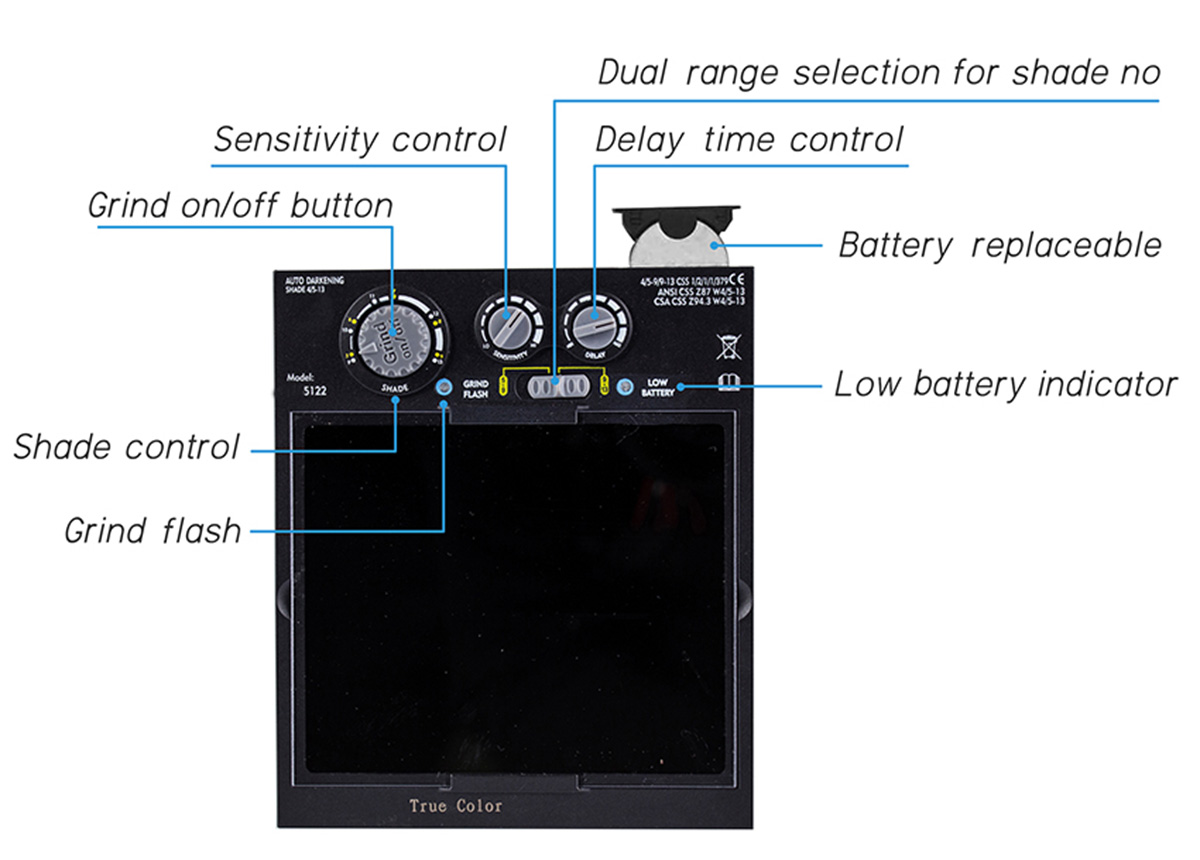

Product Parameters
| Filter Model | 5122 |
| Filter dimension | 133x114x9.5mm4.5"x5.25") |
| View size | 100x83.4mm(3.94"x3.28") |
| CE Classification | 1/1/1/1 |
| Sensors | 4 |
| Light state | 4 |
| Dark state | Variable shade 5-9/ 9-13 |
| Power control | Fully automatic |
| Shade control | Internal |
| Switching time at 23℃ | 0.08ms |
| Sensitivity Delay time control | Adjustable (Internal) |
| Time from dark to light | 0.1-0.9s adjustable |
| Grinding function(independent switch model) | Yes |
| Grinding warning flash | Yes |
| Low battery warning indicator | Yes |
| Operation temperature | -10℃- 65℃ (14℉-149℉) |
| Storing temperature | -20℃- 85℃ (-4℉-185℉) |
| Power supply | Solar cell, replaceable battery |
| Inner protection lens | PL-5003 |
| Minimum TIG welding current | 3A |
| Maximum TIG welding current | 350A |
